AM6852ATGGHAALZR Description:

The AM68 family of scalable processors, featuring the evolving Jacinto™ 7 architecture for intelligent vision cameras and general-purpose computing applications, is built on TI's extensive advanced market knowledge gained from more than a decade of experience in the vision processor market.The AM68x family is purpose-built for a wide range of cost-sensitive, high-performance computing applications in factory automation, building automation and other markets.

The AM68 delivers high-performance computing technology for both conventional and deep learning algorithms at industry-beating power/performance ratios, with a high degree of system integration to enable scalability and lower cost for advanced vision camera applications. Key cores include new Arm and GPU processors for regular computation, next-generation DSPs with scalar and vector cores, dedicated deep learning and legacy algorithm accelerators, integrated next-generation imaging subsystems (ISPs), video codecs, and isolated MCU islands. All protected by industrial-grade secure hardware accelerators.

General Purpose Computing Cores and Integration Overview: The standalone dual-core cluster configuration of the Arm® Cortex®-A72 facilitates multi-operating system applications with very low software hypervisor requirements. Up to two Arm® Cortex®-R5F subsystems manage low-level, timing-critical processing tasks, making the Arm® Cortex®-A72 core application agnostic. TI's 7th generation ISP builds on the existing excellent ISPs with the flexibility to handle a broader sensor suite, support higher bit depths, and feature analytics-oriented applications. Integrated diagnostics and security features support operation up to SIL-2 levels, while integrated security features protect data from modern attacks, and a CSI2.0 port supports multiple sensor inputs.

AM6852ATGGHAALZR Specifications:

Manufacturer: Texas Instruments

Product Category: Microprocessors - MPUs

Core: ARM Cortex A72

Number of Cores: 2 Core

Data bus width: 64 bit

Maximum clock frequency: 2 GHz

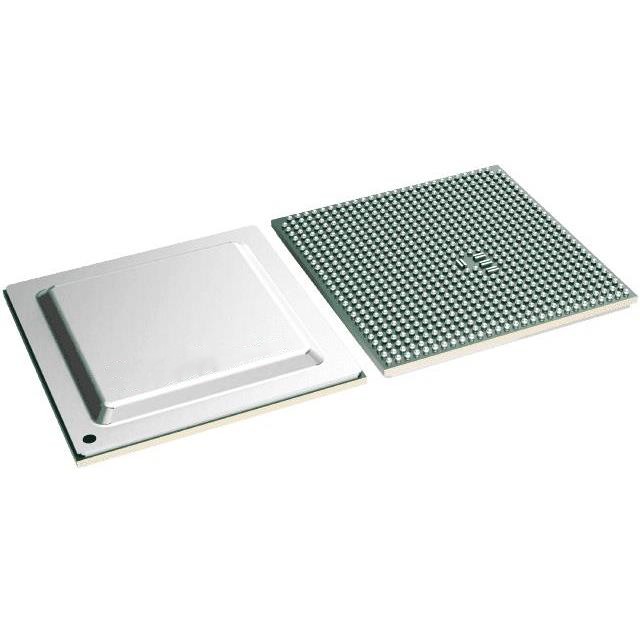

Package / Case: FCBGA-770

L1 cache instruction memory: 48 kB

L1 cache data memory: 32 kB

Operating supply voltage: 1.8 V

Series: AM68

Mounting style: SMD/SMT

Minimum operating temperature: - 40 C

Maximum operating temperature: + 105 C

Data RAM size: 512 kB

Development Kit: SK-AM68

L2 Cache Instruction/Data Memory: 1 MB

Memory type: LPDDR4

Humidity sensitivity: Yes

Number of inputs/outputs: 155 I/Os

Number of timers/counters: 30

AM6852ATGGHAALZR Applications:

- Machine vision cameras and computers

- Smart Shopping Carts

- Retail Automation

- Smart Agriculture

- Video Surveillance

- Traffic Surveillance

- Autonomous Mobile Robots (AMR)

- Drones

- Industrial Transport

- Industrial Human Machine Interface (HMI)

- Industrial PCs

- Single Board Computers

- Patient monitoring and medical equipment
