Trade Name:Battery Management
Brand:ADI
Particular Year:24+
Package:LQFP-48
Delivery Date:New and Original
Stock: 2000pcs
ADRF8800WASWZ - 2.4GHz Low Power Wireless Battery Management Systems (wBMS) Node
Product Overviews
ADRF8800WASWZ is low power, integrated systems on chip (SoC) that include a 2.4 GHz (industrial scientific medical) ISM band radio and an embedded microcontroller unit (MCU) subsystem. It provide wireless communications between the battery cell monitoring chip and the battery management system (BMS) controller. In the wireless battery management system (wBMS), the ADRF8800 nodes reside at the battery cells and take sensor data from the battery cell monitors.
Key Features
Low power 2.4 GHz radio
RF frequency range: 2400 MHz to 2483.5 MHz ISM band
1 Mbps and 2 Mbps data rate options
Transmit output power: –10 dBm to +12 dBm
On-chip temperature sensor
Auxiliary ADC with three input ports
Few external components required
On-chip LDO power
Integrated RF match
Integrated transmit and receive switch
Microcontroller with a memory protection unit (MPU)
Secure JTAG port supporting code download
SPI × 3
GPIO ports
UART × 2
General-purpose, wake-up, and watchdog timers
On-chip POR
Programmable CRC up to 32 bits
Model
Brand
Package
Quantity
Describe
INFINEON
TQFP-48
2500
Battery management multi-functional controller IC lithium-ion PG-TQFP-48
ADI
SSOP-48
3000
4th generation 12-channel multi-unit battery monitor with integrated Daisy link port
ADI
SSOP-48
4000
4th generation 12-channel multi-unit battery monitor with integrated Daisy link port
TI
HTQFP-64
5000
ASIL-D compliant automotive grade 16 cell series precision battery monitor, balancer and integrated protector
TI
HTQFP-64
6000
3 to 6 Cell Series Li-Ion Battery Monitor and Secondary Protection for Automotive Battery Packs
A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.
A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.
A: at present, our self-employed brands TI,ST,ADI,NXP,LATTICE,CYPRESS,INFINEON,XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.
A: You can inquire through the website, or by phone and email.
A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.
A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
The full name of Analog Devices is Analog Devices, Inc. (ADI). As an outstanding supplier specializing in semiconductor sensors and signal processing ICs, adi regards innovation, performance and excellence as the cultural pillars of the company and ha…
LTC2601CDD-1

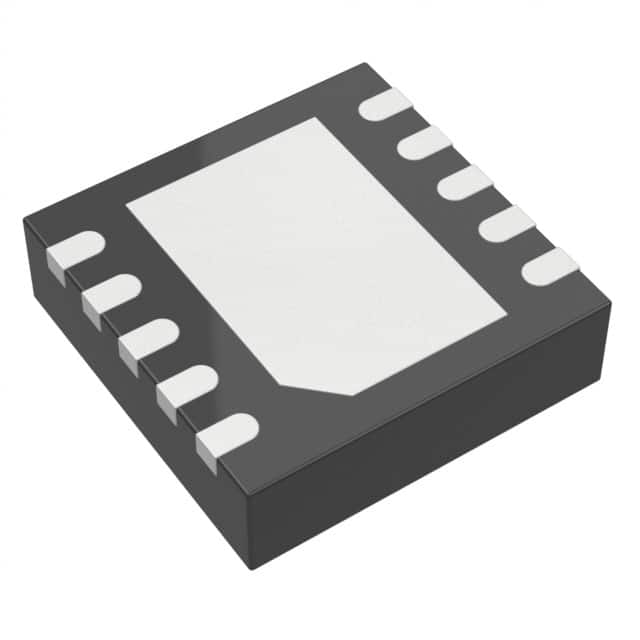

The LTC2601CDD-1 is a single-channel 16-bit, 2.5V to 5.5V rail-to-rail voltage output DAC in a 10-pin DFN package. This device is equipped with a high-performance output buffer and ensures monotonic characteristics. The following are its core features…LTC1595AIS8
The LTC1595AIS8 is a serial input, 16-bit multiplicative current output DAC. It is pin and hardware compatible with the 12-bit DAC8043 and comes in an 8-pin SO package. The LTC1595AIS8 has a specified industrial temperature range. Compared with the in…AD9152BCPZ
The AD9152BCPZ is a dual-channel, 16-bit, high dynamic range digital-to-analog converter (DAC) that offers a maximum sampling rate of 2.25 GSPS and can generate multi-carriers up to Nyquist frequencies. The AD9152BCPZ has been optimized to seamlessly …AD9164BBCAZ
The AD9164BBCAZ is a high-performance 16-bit digital-to-analog converter (DAC) and direct digital frequency synthesizer (DDS), supporting an update rate of up to 6 GSPS. The DAC core is based on a four-channel switch structure, combined with a 2x inte…AD5546BRUZ
The AD5546BRUZ is a 16-bit resolution current output digital-to-analog converter (DAC) with a parallel input interface, supporting four-quadrant output (10V). The following are its main specifications:Number of digits: 16Number of digital-to-analog co…AD5532BBCZ-1
The AD532BBCZ-1 is a 32-channel, bipolar, 14-bit voltage output DAC with an integrated infinite sampling-hold mode. It is an improved version of the existing device AD5532.Technical parametersNumber of digits: 14Number of digital-to-analog converters:…Contact Number:86-755-83294757
