The STM32L4R9ZGJ6 devices are an ultra-low-power microcontroller family (STM32L4+ family) based on the high-performance Arm® Cortex®-M4 32-bit RISC core. They operate at frequencies up to 120 MHz.

The STM32L4R9ZGJ6 devices offer a fast 12-bit ADC (5 Msps), two comparators, two operational amplifiers, two DAC channels, an internal voltage reference buffer, a low-power RTC, two general-purpose 32-bit timers, two 16-bit PWM timers dedicated to motor control, seven general-purpose 16-bit timers and two 16-bit low-power timers. These devices support four digital filters for external Σ-Δ modulators (DFSDM). In addition, up to 24 capacitive sensing channels are available.

Product attributes

Core processor: ARM® Cortex®-M4

Core specification: 32-bit single core

Speed: 120MHz

Connectivity: CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, SAI, SPI, UART/USART, USB OTG

Peripherals: Undervoltage detection/reset, DMA, POR, PWM, WDT

Number of I/Os: 112

Program memory capacity: 1MB (1M x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 640K x 8

Voltage - Supply (Vcc/Vdd): 1.71V ~ 3.6V

Data converter: A/D 14x12b; D/A 2x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 85°C (TA)

Mounting type: Surface mount type

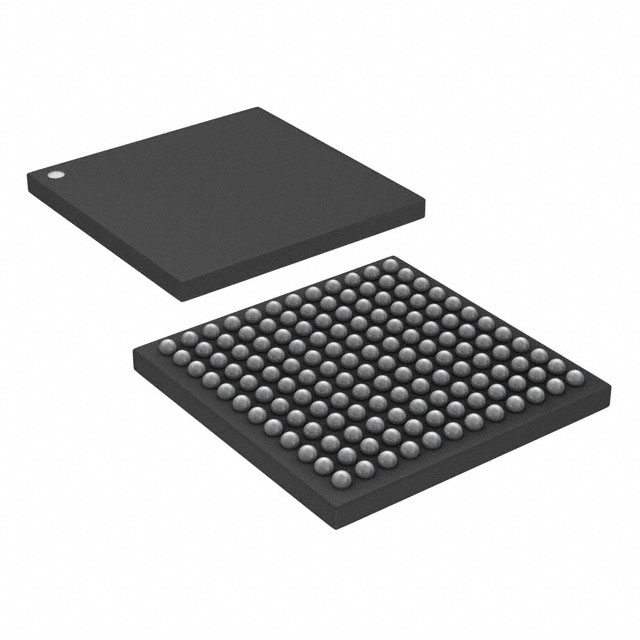

Package / Case: 144-UFBGA

Supplier Device Package: 144-UFBGA (10x10)
