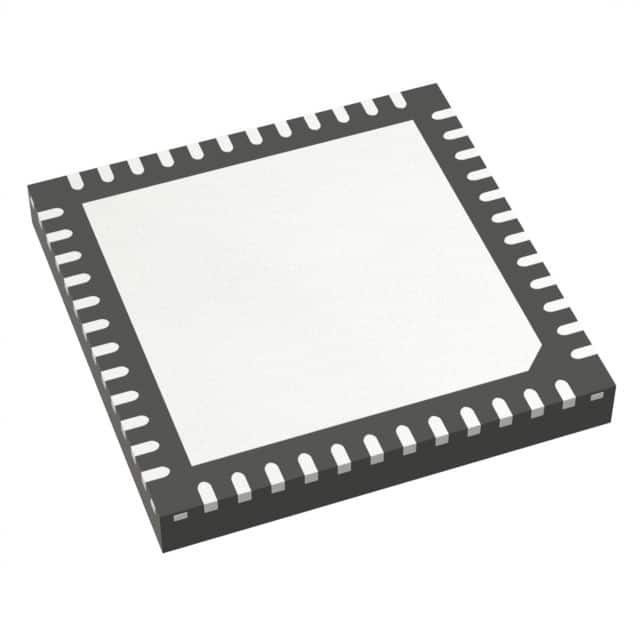

The STMicroelectronics STM32L462CEU6 32-bit MCU+FPU is an ultra-low-power microcontroller based on the high-performance ARM®Cortex®-M4 32-bit RISC core, operating at up to 80 MHz. A full set of DSP instructions and a Memory Protection Unit (MPU) are executed simultaneously to enhance application security.

The STM32L4 microcontroller is based on a new ultra-low power platform with FlexPowerControl. It extends flexibility and achieves optimized power consumption. STM32L4 outperforms the market in the ultra-low power area with an EEMBC ULPBench score of 150 ULPBench™-CP.

Product attributes

Family: STM32L4

Core processor: ARM® Cortex®-M4

Core specification: 32-bit single core

Speed: 80MHz

Connectivity: CANbus, I²C, IrDA, LINbus, QSPI, SAI, SPI, SWPMI, UART/USART, USB

Peripherals: Undervoltage detection/reset, DMA, PWM, WDT

Number of I/Os: 38

Program memory capacity: 512KB (512K x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 160K x 8

Voltage - Supply (Vcc/Vdd): 1.71V ~ 3.6V

Data converter: A/D 10x12b; D/A 2x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 85°C (TA)

Mounting type: Surface mount type

Package/Case: 48-UFQFN Exposed Pad

Supplier device package: 48-UFQFPN (7x7)
