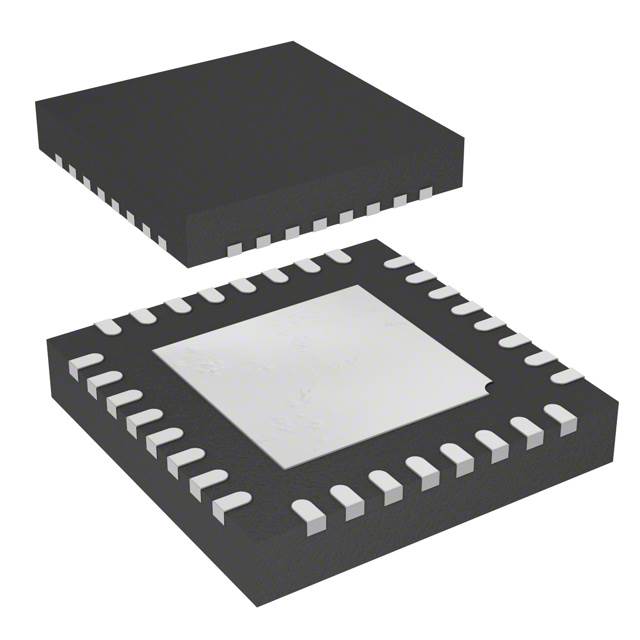

STM32L442KCU6 ARM Microcontroller - MCU Ultra-low-power FPU Arm Cortex-M4 MCU 80 MHz 256 Kbytes of Flash USB, AES-256, D

The Cortex®-M4 processor used in the STM32L4 family, STM32L4+ family is a high performance 32-bit processor designed for the microcontroller and microprocessor market. It offers developers significant advantages, including:

- Excellent processing performance combined with fast interrupt handling

- Enhanced system debugging with extensive breakpoint and trace capabilities

- Efficient processor core, system and memory

- Ultra-low power consumption with integrated sleep mode

- Platform security

Technical Specifications:

Product Type: ARM Microcontrollers - MCU

Family: STM32L442KC

Mounting Style: SMD/SMT

Package / Case: QFN-32

Core: ARM Cortex M4

Program memory size: 256 kB

Data bus width: 32 bit

ADC resolution: 12 bit

Max. clock frequency: 80 MHz

Number of inputs/outputs: 26 I/O

Data RAM size: 64 kB

Supply voltage - min: 1.71 V

Supply voltage - max: 3.6 V

Min. operating temperature: - 40 C

Max. operating temperature: + 85 C

Analogue supply voltage: 3 V

DAC resolution: 12 bit

Data Ram type: SRAM

Height: 0.6 mm

Interface type: SPI

Length: 5 mm

Humidity sensitivity: Yes

Number of ADC channels: 10 Channel

Number of timers/counters: 11 Timer
