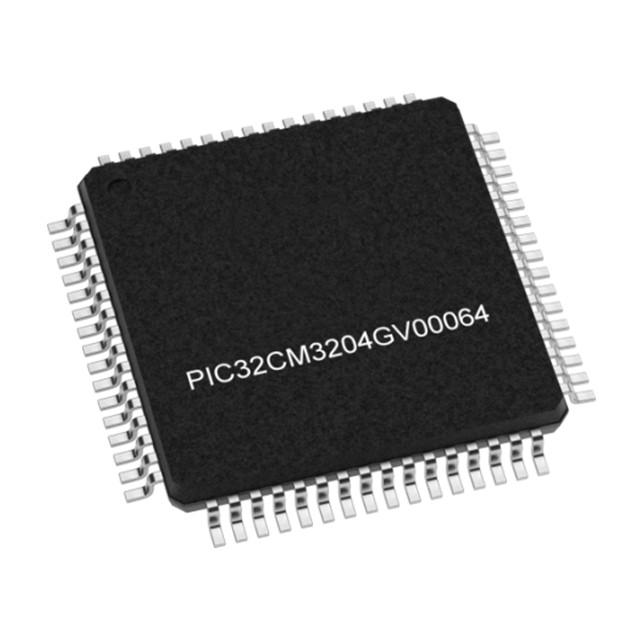

The PIC32CM3204GV00064T-E/V2X low-power MCU is built on the Arm® Cortex®-M0+ core and operates at a frequency of up to 32MHz. It is suitable for a wide range of home automation, consumer electronics, metrology and industrial applications.

Furthermore, PIC32CM3204GV00064T-E/V2X  The MCU offers four serial communication modules (SERCOM) that can be configured as UART/USART, SPI or I2C, six 16-bit timers/counters, a 32-bit real-time clock and calendar, ten PWM channels, a 10-channel 12-bit ADC and a 10-bit DAC.

Main specifications

Core processor: ARM® Cortex®-M0+

Kernel specification: 32-bit

Speed: 32MHz

Connection capabilities: I2C, IrDA, LINbus, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

I/O count: 52

Program storage capacity: 32KB (32K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 4K x 8

Voltage - Power supply (Vcc/Vdd) : 2.7V to 3.63V

Data converter: A/D 20x12b; D/A 1x10b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

Device package: 64-TQFP (10x10)

Typical applications

The PIC32CM3204GV00064T-E/V2X microcontroller is highly suitable for applications in smart home, consumer electronics, metering, and industrial control scenarios. Its low-power design and rich peripheral interfaces can meet various embedded requirements.
