STM32L4Q5AGI6 is ultra-low-power microcontroller devices (part of STM32L4+ Series) based on the high-performance Arm® Cortex®-M4 32-bit RISC core. They operate at a frequency of up to 120 MHz.

Product Attributes

Core Processor: ARM® Cortex®-M4

Core Size: 32-Bit Single-Core

Speed: 120MHz

Number of I/O: 140

Program Memory Size: 1MB (1M x 8)

Program Memory Type: FLASH

RAM Size: 320K x 8

Voltage - Supply (Vcc/Vdd): 1.71V ~ 3.6V

Data Converters: A/D 16x12b; D/A 2x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

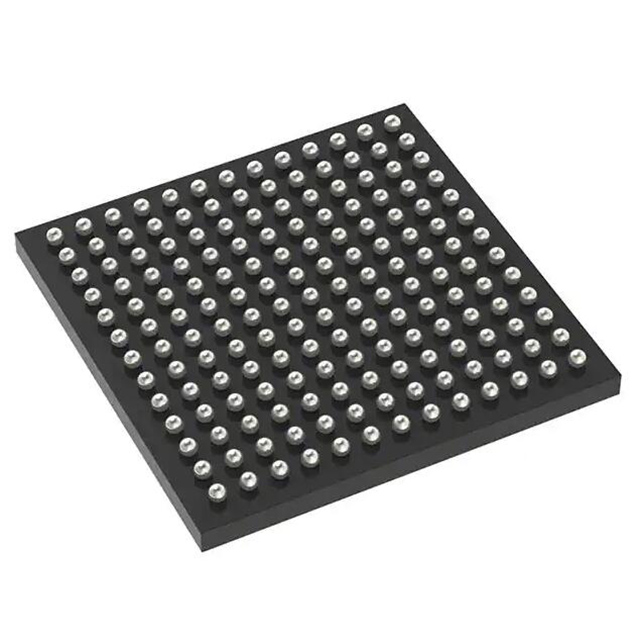

Package / Case: 169-UFBGA

Supplier Device Package: 169-UFBGA (7x7)

Features

1.71 V to 3.6 V power supply

-40 °C to 85/125 °C temperature range

Batch acquisition mode (BAM)

150 nA in VBAT mode: supply for RTC and 32x32-bit backup registers

22 nA Shutdown mode (5 wakeup pins)

42 nA Standby mode (5 wakeup pins)

190 nA Standby mode with RTC

2.95 μA Stop 2 with RTC

110 μA/MHz Run mode (LDO mode)

41 μA/MHz Run mode (@ 3.3 V SMPS mode)

5 µs wakeup from Stop mode

Brownout reset (BOR) in all modes except Shutdown

Ultra-low-power Arm®Cortex®-M4 32-bit MCU+FPU, 150 DMIPS, 1MB Flash, 320-KB SRAM, LCD-TFT, AES+PKA, ext SMPS
