STM32L431KBU6 ARM Microcontroller - MCU Ultra Low Power FPU Arm Cortex-M4 MCU 80 MHz 128 Kbytes of Flash Memory

The STM32L431KBU6 device embeds high-speed memory (up to 256 Kbytes of Flash, 64 Kbytes of SRAM), a quad SPI Flash interface (available on all packages) and a large number of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.

Specification

Product Type: ARM Microcontrollers - MCU

Family: STM32L431KB

Mounting Style: SMD/SMT

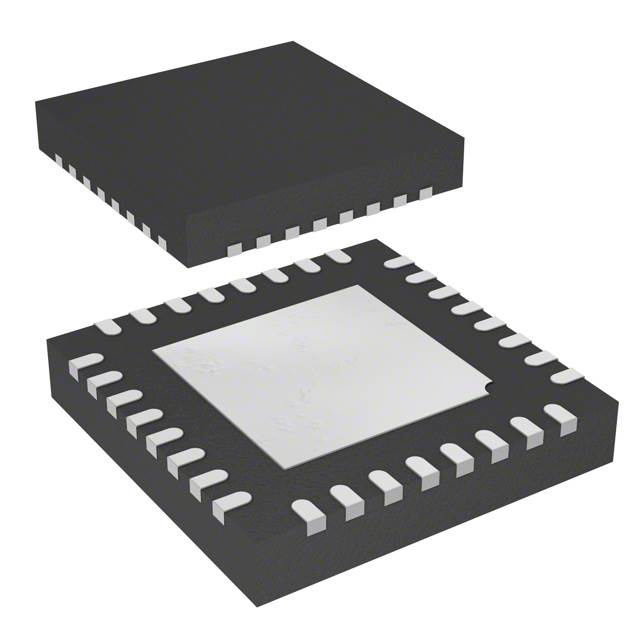

Package / Case: UFQFPN-32

Core: ARM Cortex M4

Program memory size: 128 kB

Data bus width: 32 bit

ADC resolution: 12 bit

Max. clock frequency: 80 MHz

Number of inputs/outputs: 26 I/O

Data RAM size: 64 kB

Supply voltage - min: 1.71 V

Supply voltage - max: 3.6 V

Min. operating temperature: - 40 C

Max. operating temperature: + 85 C

DAC resolution: 12 bit

Data Ram type: SRAM

Interface type: CAN, I2C, LPUART, SAI, SPI, USART

Humidity sensitivity: Yes

Number of ADC channels: 10 Channel

Number of timers/counters: 11 Timer

Processor family: STM32L4

Program memory type: Flash

Brand Name: STM32

Watchdog Timer: Watchdog Timer, Windowed

Unit weight: 48 mg
