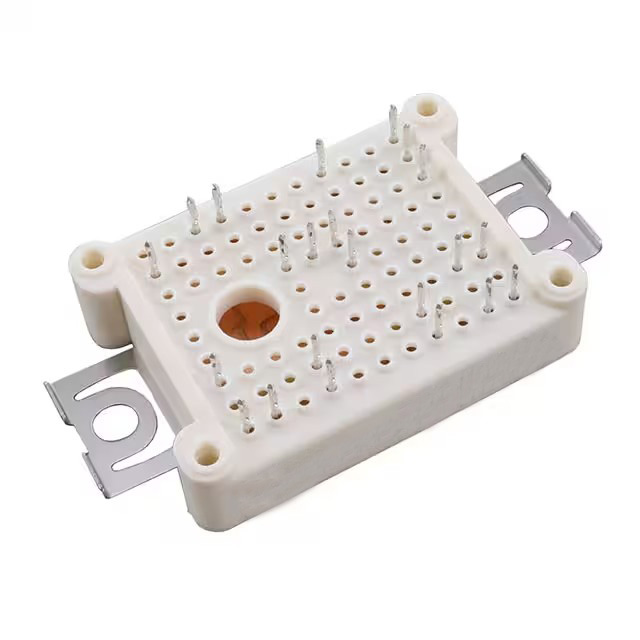

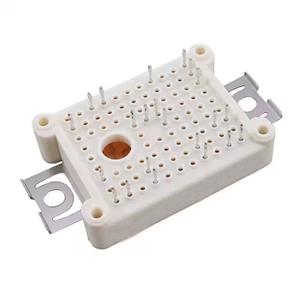

Silicon Carbide Junction Transistor DF17MR12W1M1HFB68BPSA1 Automotive IGBT Modules

Product Description

DF17MR12W1M1HFB68BPSA1 is N-Channel Silicon Carbide Junction Transistor, 1200 V 45A (Tj) 20mW, Chassis Mount.

Product Attributes

FET Type:N-Channel

Technology:SiC (Silicon Carbide Junction Transistor)

Drain to Source Voltage (Vdss):1200 V

Current - Continuous Drain (Id) @ 25°C:45A (Tj)

Drive Voltage (Max Rds On, Min Rds On):15V, 18V

Rds On (Max) @ Id, Vgs:16.2mOhm @ 50A, 18V

Vgs(th) (Max) @ Id:5.15V @ 20mA

Gate Charge (Qg) (Max) @ Vgs:149 nC @ 18 V

Vgs (Max):+20V, -7V

Input Capacitance (Ciss) (Max) @ Vds:4400 pF @ 800 V

Power Dissipation (Max):20mW

Operating Temperature:-40°C ~ 175°C (TJ)

Mounting Type:Chassis Mount

Features

Electrical features

VDSS = 1200 V

IDN = 50 A / IDRM = 100 A

Low inductive design

High current density

Mechanical features

PressFIT contact technology

Integrated NTC temperature sensor

Rugged mounting due to integrated mounting clamps

Potential applications

Solar applications
