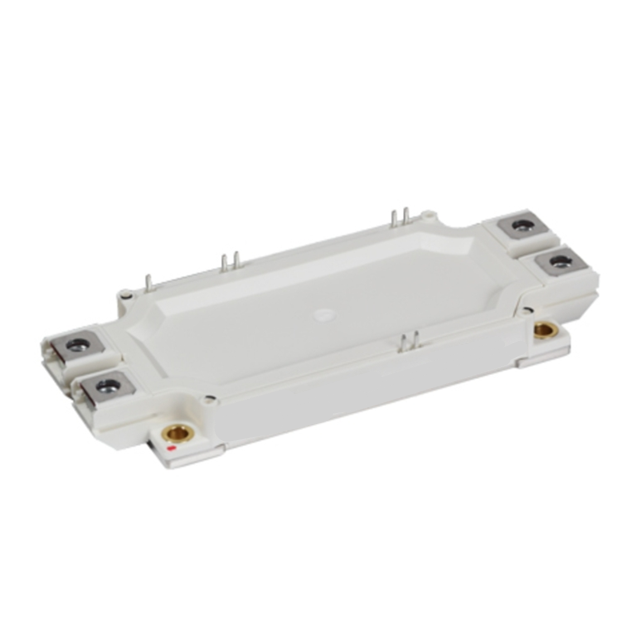

The FF1MR12MM1H device is a 1200 V CoolSiC™ MOSFET half-bridge module in a 62mm package combined with M1H chip technology, available in pre-coated Thermal Interface Material (TIM) version ‌‌.

Application field

Energy storage system

Fast charging of electric vehicles

Automotive HVAC control module

Commercial, Construction and Agricultural Vehicles (CAV)

Universal motor drive - variable frequency voltage

Technical specification

Product: FF1MR12MM1H

Number of channels: 2 channels

Vds- drain-source breakdown voltage: 1.2kV

Id- Continuous drain current: 420 A

Rds On- drain-source on-resistance: 1.91 mOhms

Vgs - grid - source voltage: -10 V, + 23 V

Vgs TH-gate source threshold voltage: 5.15V

Minimum operating temperature: -40 C

Max. operating temperature: + 175 C

Pd-power dissipation: 20 mW

Series: EconoDUAL 3

Configuration: Dual

Descent time: 77 ns

Height: 20.5 mm

Length: 152 mm

Product type: MOSFET Modules

Rise time: 261 ns

Typical shutdown delay: 319 ns

Typical turn-on delay: 182 ns

Vf - Forward voltage: 4.14V

Width: 62.5 mm
