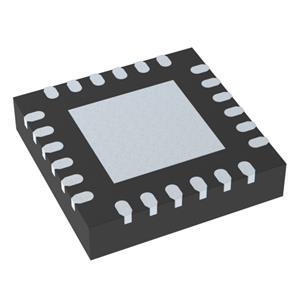

AFE882H1RRUR is highly-integrated, high-accuracy, extremely low-power Analog Front End with voltage-outputs designed for HART-enabled process control and industrial automation applications.

Feature

Functional Safety-Capable

Documentation available to aid functional safety system design

Low quiescent current: 180 µA (typical)

HART-compliant physical layer modem

Programmable amplitude of TX signals

RX demodulator and band-pass filter

16-bit or 14-bit monotonic high-performance DAC

DAC output range: 0 V to 2.5 V

Digital DAC slew-rate control

4-LSB INL at 16 bits

0.07% FSR (max) TUE from –40°C to +125°C

12-bit 3.84-kSPS ADC for advanced diagnostics

Integrated 1.25-V reference at 10 ppm/°C (max)

Internal 1.2288-MHz oscillator with clock output

Digital interface

Serial peripheral interface (SPI): Shared bus for both DAC and HART

Universal asynchronous receiver-transmitter (UART): Shared bus for both DAC and HART

Both: SPI for DAC and UART for HART

Fault detection: CRC bit error checking, windowed watchdog timer, diagnostic ADC

Wide operating temperature: –55°C to +125°C

 Applications

Process control and industrial automation

PLC or DCS I/O modules

3-wire and 4-wire transmitters

4-mA to 20-mA loop-powered applications
