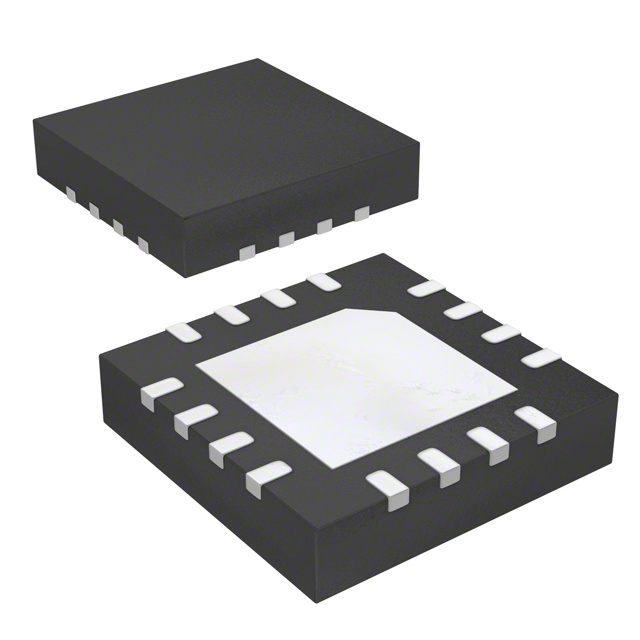

The 8V97003NLGI/W is a high-performance broadband microwave frequency synthesizer/phase-locked loop (PLL) that generates output frequencies up to 18GHz from an integrated voltage-controlled oscillator (VCO), providing an octave frequency tuning range. The device provides a high-performance 32-bit fractional feedback frequency divider and output divider, allowing users to take full advantage of the VCO's broadband characteristics. The device features a quality factor (FOM) of -236dBc/Hz, excellent VCO performance, and very low phase noise and RMS phase jitter. The 8V97003 has a very low output-to-output phase offset of 10° at all operating conditions and frequencies, reducing radio path recalibration in beamforming applications such as 5G radio card massive MIMO systems. The output drivers have programmable output power settings that provide high single-ended output power of +12dBm at 8GHz and +4dBm at 18GHz when using inductively loaded outputs (dual terminated). When the output is a resistive load, the output driver provides +9.5dBm (8GHz) single-ended output power and up to -2.5dBm single-ended output power at 12GHz. Output power can be further increased using differential outputs and differential measurement of output power. The 8V97003 is powered from a single 3.3V supply and provides a low-noise integrated LDO with excellent power supply noise immunity.

Features

Output frequency range: 171.875.5MHz to 18GHz

Ultra-low phase noise VCO

-60.6dBc (35fs RMS) integrated phase jitter from 20kHz to 100MHz at 6GHz

Quality factor: -236dBc/Hz

Input reference frequency: 10MHz to 1GHz (LVPECL, LVDS); 10MHz to 250MHz (LVCMOS)

Fractional N-division synthesizer and integer N-division synthesizer

32-bit fractional and modal resolution

Phase frequency detector (PFD) operating up to 500MHz (integer mode) or 250MHz (fractional mode)

Programmable RF output power level

Ambient temperature range: -40°C to +95°C; case temperature up to +105°C

3.3V single supply

Integrated LDO for good power supply noise immunity

7 × 7 mm 48-VFQFN package

SPI interface compatible with 1.8V logic with 3.3V withstand voltage

Typical Applications

▪ 5G millimeter wave wireless infrastructure

▪ Massive MIMO

▪ Phase Array Antennas and beam forming

▪ Wireless backhaul

▪ Point-to-point and point-to-multipoint microwave links

▪ Satellites / VSATs

▪ Test equipment/instrumentation

▪ Clock generation

▪ High-speed RF converters sampling clocks

▪ Radar
