The AFE7444IALK is a four-channel, 10MHz to 6GHz RF sampling transceiver that supports up to 600MHz IBW. The AFE7444 can operate at radio frequencies up to 6GHz, and this device supports direct RF sampling to the C band without additional frequency conversion phases. Improvements in density and flexibility enable support for high channel count, multi-tasking systems.

Features of AFE7444

Four-channel, 14-bit 9GSPS DAC

Signal bandwidth up to 800MHz

One DSA per channel regulates the output power

Four-channel, 14-bit 3GSPS ADC

Signal bandwidth up to 800MHz

NSD: - 151dBFS/Hz

Ac performance when fIN = 2.6GHz and -3 DBFS

SNR: 55dBFS

SFDR: 73dBc HD2 and HD3

SFDR: 91dBc (most severe Burr)

Two Dsas per channel extend dynamic range

Rf and digital power detectors

Rf frequency range: 10MHz to 6GHz

Fast frequency hopping < 1µs

Receiving digital signal path:

Each ADC is connected to a dual-channel DDC

Each DDC has three phase-coherent 32-bit Ncos

Extraction rate: 3x to 32x

Send digital signal path:

Each DAC with 32-bit NCO connects to a dual-channel DUC

Interpolation rate: 8x to 36x

Sin(x)/x correction and configurable delay

Power Amplifier Protection (PAP)

JESD204B Interface:

8 transceivers up to 15Gbps

Subclass 1 multi-chip synchronization

Clock:

Internal PLL and VCO with bypass options

Use a clock divider to produce clock output up to 3GHz

DAC power consumption: 1.7W/ch at 9GSPS

ADC power consumption: 1.8W/ch at 3GSPS

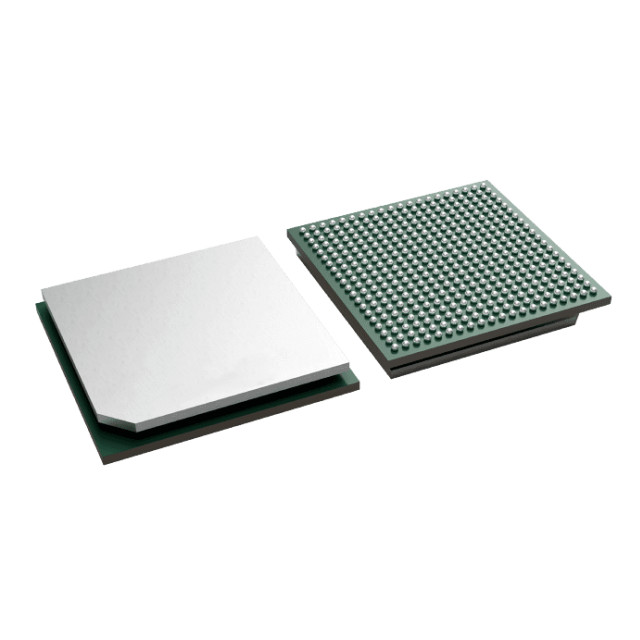

Package: 17mm x 17mm FC BGA, 0.8mm pitch
