AFE7444IABJ - Quad-channel, RF-sampling AFE with 14-bit, 9-GSPS DACs and 14-bit, 3-GSPS ADCs

Part Number: AFE7444IABJ

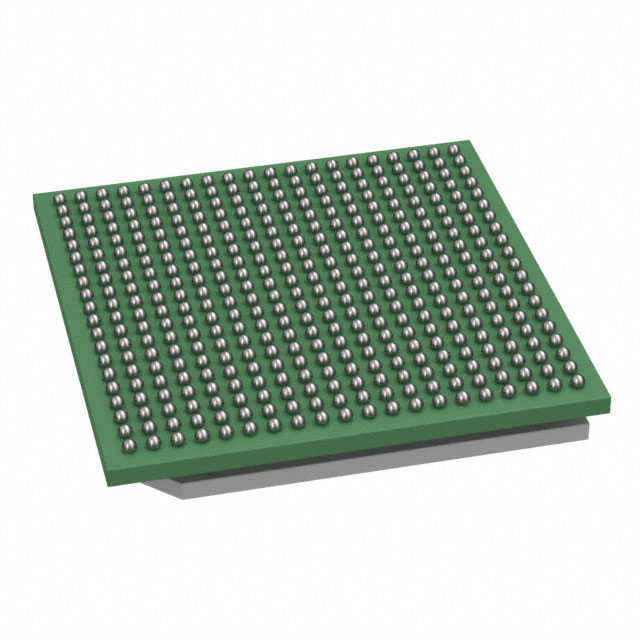

Package: FCBGA-400

Type: Analog Front End (AFE)

Description: 4 Channel AFE 14 Bit 400-FCBGA (17x17)

Product Overviews

AFE7444IABJ is a quad-channel, wideband, RFsampling analog front end (AFE) based on 14-bit, 9- GSPS DACs and 14-bit, 3-GSPS ADCs. With operation at an RF of up to 6 GHz, this device enables direct RF sampling into the C-band frequency range without the need for additional frequency conversions stages. This improvement in density and flexibility enables high-channel-count, multimission systems.

Product Features

• Four, 14-bit, 9-GSPS DACs

– Up to 800-MHz signal bandwidth

– 1 DSA per channel tunes output power

• Four, 14-Bit, 3-GSPS ADCs

– Up to 800-MHz signal bandwidth

– NSD: –151 dBFS/Hz

– AC performance at fIN = 2.6 GHz, –3 dBFS

– SNR: 55 dBFS

– SFDR: 73 dBc HD2 and HD3

– SFDR: 91 dBc worst spur

– 2 DSA per channel extends dynamic range

– RF and digital power detectors

• RF frequency range: 10 MHz to 6 GHz

• Fast frequency hopping < 1 µs

• JESD204B interface:

– 8 transceivers at up to 15 Gbps

– Subclass 1 multichip synchronization

Applications

• Communications equipment and testers

• Wideband digitizers and waveform generators
