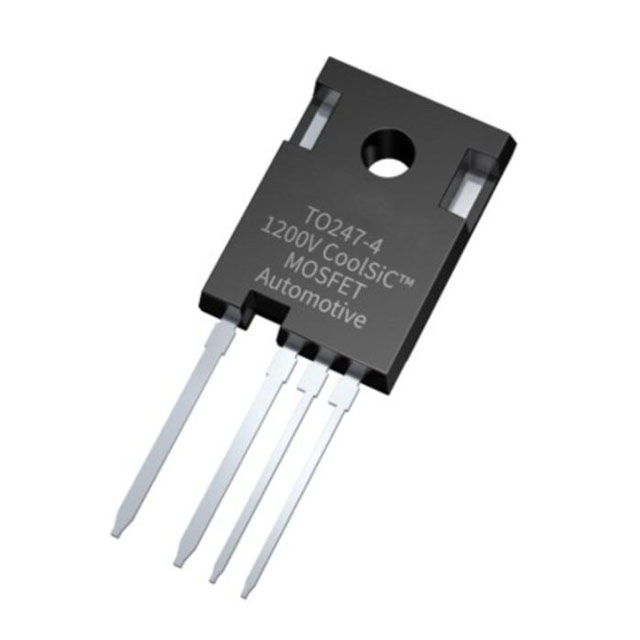

AIMZH120R120M1T - Automotive 1200V Silicon-carbide (SiC) Trench Power MOSFET Transistors in TO247-4L (thin leads)

Part Number: AIMZH120R120M1T

Package: TO-247-4

Type: MOSFET Transistors

Description: N-Channel 1200V 22A (Tc) 133W (Tc) Through Hole PG-TO247-4-11

Product Overviews

AIMZH120R120M1T - With Infineon’s performance optimized chip technology (Gen1p), the SiC Mosfet features best-in-class switching performance, robustness against parasitic turn-ons, as well as improved RDSon and Rth(j-c). High power density, superior efficiency, bi-directional charging capabilities and significant reductions in system costs making it an ideal choice for on-board charger and DCDC applications.

Summary of Features

Very low switching losses

Increased turn-on voltage VGS(on)= 20 V

Best in class switching energy

Lowest device capacitances

low Crss/Ciss ratio and high VGS(th) to avoid parasitic turn-on

Reduced total gate charge QGtot for lower driving power and losses

.XT die attach technology for best in class thermal performance

Sense pin for optimized switching performance

Suitable for HV creepage requirements

Thinner leads for reduced risk of solder bridges

Potential Applications

On-board charger

DC/DC converter

Auxiliary drives
