The QorIQ® LS1 family (LS1022ASN7EKB communications processor) features the Layerscape architecture, the industry's first software-aware, kernel-independent network architecture for unrivalled efficiency and scalability.

Specification

Family: QorIQ® Layerscape

Core Processor: ARM® Cortex®-A7

Number of Cores/Bus Width: 2 cores, 32-bit

Speed: 600MHz

Co-processor/DSP: Multimedia; NEON™ SIMD

RAM Controller: DDR3L, DDR4

Ethernet: GbE (2)

SATA: SATA 3Gbps (1)

USB: USB 2.0 (1)

Operating Temperature: 0°C ~ 105°C

Safety Features: Safety Sheath, TrustZone®

Mounting Type: Surface Mount

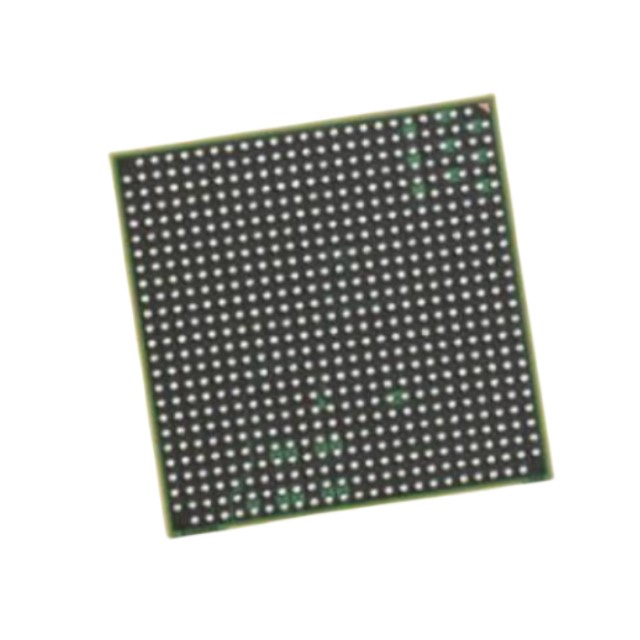

Package/Housing: 525-FBGA, FCBGA

Vendor Device Package: 525-FCPBGA (19x19)

Features

SerDes

4-channel up to 6 GHz (LS1020A)

SGMII, PCIe and SATA support

Ethernet

Single channel, up to 5 GHz (LS1022A)

PCIe® support

3 Virtualised Enhanced Tri-Speed Ethernet Controllers (VeTSEC) supporting SGMII (up to two), RGMII, RMII, MII (LS1020A)

Supports IEEE® 1588

Two Virtualised Enhanced Tri-Speed Ethernet Controllers (VeTSEC) supporting RGMII, RMII, MII

Supports IEEE 1588

Two PCIe Gen2 controllers (LS1020A)

Supports up to 5G/tps via single, dual, or 4-channel (with a single controller)

MSI Support

1 PCIe Gen2 controller

Supports up to 5G/tps via single lane

MSI Support
