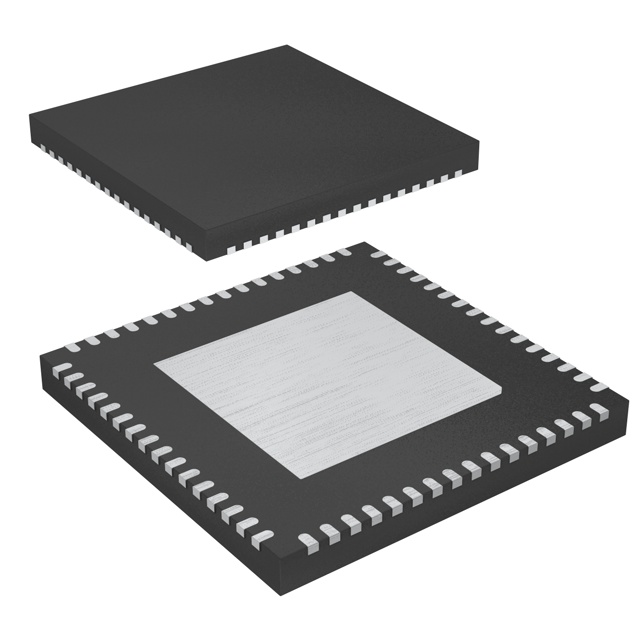

LAN9253T/R4X - 2/3-Port EtherCAT® Slave Controller with Integrated Ethernet PHYs

Product Description

LAN9253T/R4X is a 2/3-port EtherCAT slave controller with dual integrated Ethernet PHYs, each containing a full-duplex 100BASE-TX transceiver that supports 100Mbps (100BASE-TX) operation. The LAN9253 supports HP Auto-MDIX, allowing the use of direct connect or cross-over LAN cables. EtherCAT P and Signal Quality Index PHY diagnostics are supported. The LAN9253 includes an EtherCAT slave controller with 8K bytes of Dual Port memory (DPRAM) and 8 Fieldbus Memory Management Units (FMMUs). Each FMMU performs the task of mapping logical addresses to physical addresses.

Highlights

2/3-port EtherCAT slave controller with 8 Fieldbus Memory Management Units (FMMUs) and 8 SyncManagers

Interfaces to most 8/16-bit embedded controllers and 32-bit embedded controllers with an 8/16-bit bus

Integrated Ethernet PHYs with HP Auto-MDIX

Wake on LAN (WoL) support

Low power mode allows systems to enter sleep mode until addressed by the Master

Cable diagnostic support

1.8V to 3.3V variable voltage I/O

Integrated 1.2V regulator for single 3.3V operation

Target Applications

Motor Motion Control

Process/Factory Automation

Communication Modules, Interface Cards

Sensors

Hydraulic & Pneumatic Valve Systems

Operator Interfaces
