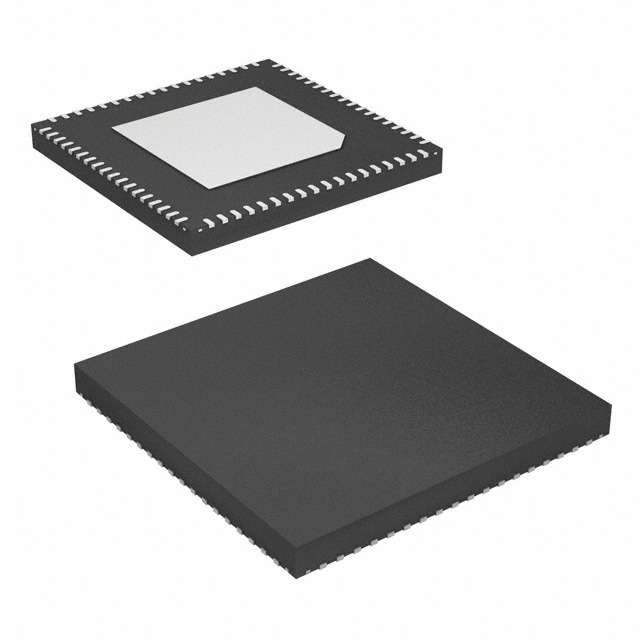

LAN7431-I/YXX is a PCIe 3.1 (at 2.5GT/s) to Reduced Gigabit Media Independent Interface (RGMII) Gigabit Networking bridge providing an ultra-high-performance and cost-effective PCIe to Ethernet connectivity solution. LAN7431 contains an integrated RGMII interface, PCIe PHY, PCIe endpoint controller, 10/100/1000 Gigabit Ethernet MAC, Integrated OTP, JTAG TAP and EEPROM controller.

Product Features

Single-chip, PCIe 3.1 @ 2.5GT/s MII / RGMII Network Controller

• PCIe Low Power Sub State LPSS L1.1 (snooze) & L1.2 (off)

• Requires only a single 25MHz crystal or single ended clock

• 9K jumbo frames are supported

• Internal OTP memory to remove the need for external EEPROM

RGMII / MII

• RGMII v1.3, v2.0 with option for programmable delay

• Variable IO power supplies in the range 1v8 to 3v3

• IEEE 1588-2008 Precision Time Protocol

• IEEE 1588-2008 E2E and P2P one and two step supported

• IEEE 1588-2008 Programmable Time Compare output (Eg: 1PPS)

Comprehensive Driver Support

• Windows OneCore with WHQL Certification

• Linux driver in mainline kernel

• QNX Support Package

Target Applications

• Automotive Infotainment / Telematics

• PCIe to Gigabit Ethernet Adapter / Bridge

• PCIe to Gigabit Ethernet on Embedded System

• Gigabit Backplane

• LTE Modem

• Networked Cameras

• Industrial PC (IPC)

• Test Instrumentation / Industrial
