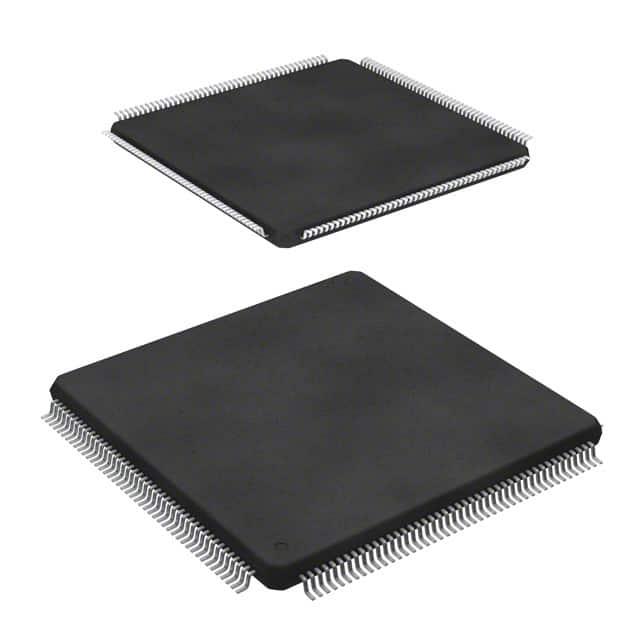

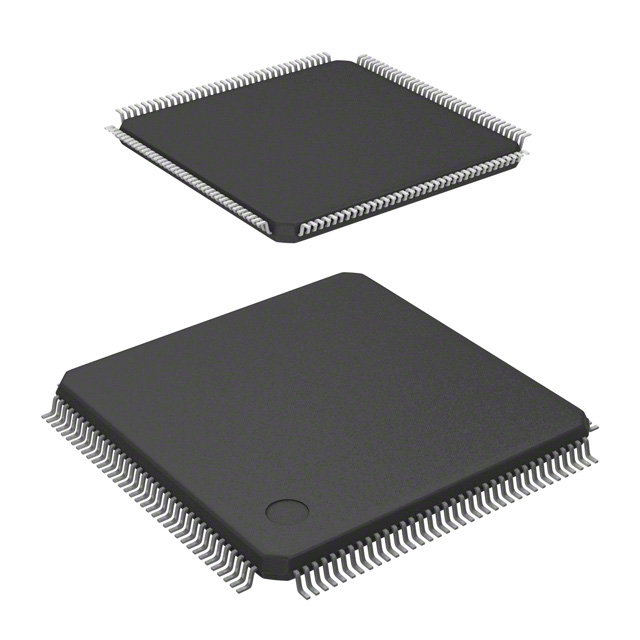

STM32L431CBT3 - Ultra-low-power with FPU Arm Cortex-M4 MCU 80 MHz with 128 Kbytes of Flash memory

Product Description

STM32L431CBT3 is the ultra-low-power microcontrollers based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 80 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all Arm® single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.

Product Features

Ultra-low-power with FlexPowerControl

1.71 V to 3.6 V power supply

-40 °C to 85/105/125 °C temperature range

200 nA in VBAT mode: supply for RTC and 32x32-bit backup registers

Up to 83 fast I/Os, most 5 V-tolerant

RTC with HW calendar, alarms and calibration

Up to 21 capacitive sensing channels: support touchkey, linear and rotary touch sensors

Up to 256 KB single bank Flash, proprietary code readout protection

64 KB of SRAM including 16 KB with hardware parity check

Quad SPI memory interface

Rich analog peripherals (independent supply)

1x 12-bit ADC 5 Msps, up to 16-bit with hardware oversampling, 200 μA/Msps

2x 12-bit DAC output channels, low-power sample and hold

1x operational amplifier with built-in PGA

2x ultra-low-power comparators
