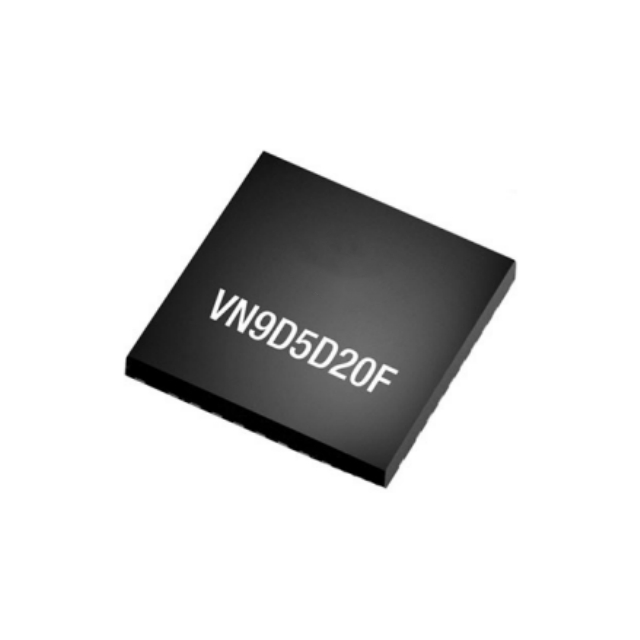

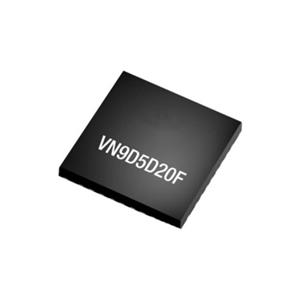

The VN9D5D20FNTR is a device manufactured using ST's VIPower technology. It is used to drive directly grounded resistive or inductive loads. The device features transient voltage protection on the VCC pin. Programming, control and diagnostics are implemented via the SPI bus. Digital current sense feedback for each channel is provided by an integrated 10-bit ADC (0.1% FSR). Dedicated trim bits allow adjustment of the ADC reference current. The device is equipped with four outputs that can be controlled via direct inputs assigned via SPI or 2-OTP.

FEATURES

● Very low operating voltage for deep cold start applications

● 24-bit ST-SPI for full diagnostics and digital current sense feedback

● Integrated 10-bit ADC for digital current sense

● Integrated PWM engine with independent phase shift and frequency generation

● Programmable bulb/LED modes for all channels

● Advanced "limp home" feature for a robust fail-safe system

● Extremely low standby current

● Optimised electromagnetic emissions

● Extremely low electromagnetic sensitivity

● Control via direct input and/or SPI

● Compliance with EU Directive 2002/95/EC

APPLICATIONS

● Resistive, inductive or capacitive loads for all types of automotive applications.

● Specialised for automotive signal lamps or turn indicators
