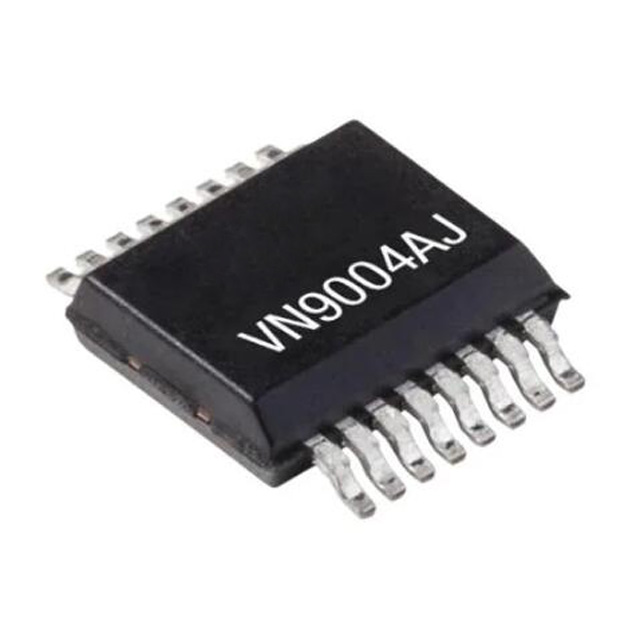

The VN9004AJTR single-channel high-side driver is manufactured using ST's proprietary VIPower M0-9 technology in a PowerSSO-16 package. The device is used to drive 12V automotive grounded loads via 3V and 5V CMOS compatible interfaces to provide protection and diagnostic functions. The device integrates various advanced protection features such as load current limiting, active management of overloads through power limiting, and thermal shutdown with configurable latch-up. the FaultRST pin unlocks the output or disables the latch-up function in the event of a fault.

Product Attributes

Switch Type: General Purpose

Number of Outputs: 1

Ratio - Input:Output: 1:1

Output Configuration: High End

Output Type: N-Channel

Interface: Parallel

Voltage - Supply (Vcc/Vdd): 4V ~ 28V

Current - Output (Max): 108A

On-resistance (typical): 4.2 milliohms

Input Type: Non-Inverting

Features: Load Release, Status Flags

Fault Protection: Current Limit (Adjustable), Over Temperature, Over Voltage, Battery Reverse, UVLO

Operating Temperature: -40°C ~ 150°C (TJ)

Grade: Automotive Grade

Qualification: AEC-Q100

Mounting Type: Surface Mount

Supplier Device Package: PowerSSO-16

Package/Housing: 16-PowerLFSOP (0.154", 3.90mm wide)

Applications

● Especially suitable for automotive smart power distribution applications

● Electric heat plugs

● Heating systems

● DC motors

● Relay replacements

● High-power resistive and inductive actuators
