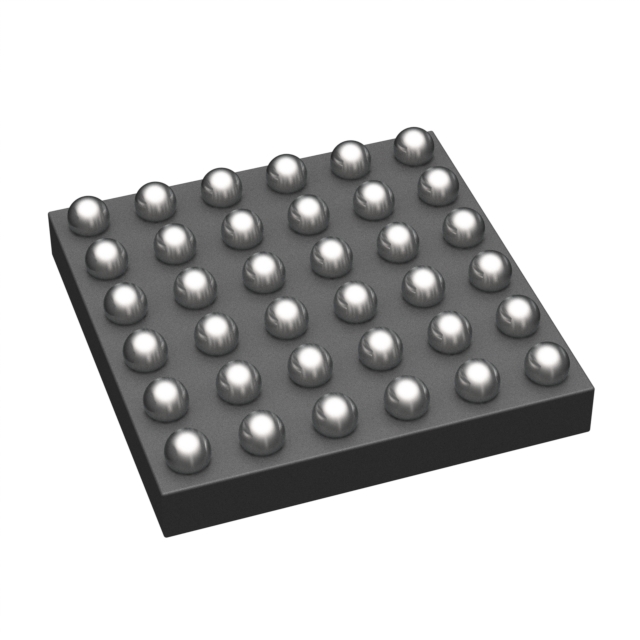

Commodity Model:AFE4950YBGR

Trade Name:AFE4950YBGR

Data Manual:AFE4950YBGR.pdf

Brand:TI

Particular Year:23+

Package:36-XFBGA

Delivery Date:New original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
AFE4950YBGR
Package
36-XFBGA
Describe
Ultra-Small, Integrated AFE for Wearable Optical Heart-Rate Monitoring

Product Description

AFE4950YBGR is an analog front-end for synchronized signal acquisition of PPG and ECG signals.


Features

Supports simultaneous and synchronized acquisition of up to 24 PPG and a single-lead ECG signal.

Flexible allocation of 8 LED, 4 PD in each phase

1-lead ECG signal acquisition up to 2 kHz

RLD output to drive a third electrode

Input noise : 0.7 µV-rms

Supports up to ±0.65 V differential DC offset and +/-0.55 V common mode range

Programmable INA gain: 11, 21

High-pass filter with quick saturation recovery

Integrated 300 Hz anti-aliasing low pass filter

AC, DC lead-off detect: 2.9 nA to 92.5 nA

Low power continuous lead-on detection

Impedance signal chain

Continuous low-power monitoring of impedance between 2 electrodes

7 MΩ range

300 Ω noise on 620 kΩ

Mode to fire two LEDs in parallel

Ambient rejection close to 100 dB up to 10 Hz

Noise filtering with programmable bandwidth

Trans-impedance Gain: 3.7 kΩ to 1 MΩ

External clock and internal oscillator modes

Acquire data synchronized with system master clock

FIFO with 256-sample Depth


Applications

Optical Heart-Rate Monitoring (HRM) for Wearables, Hearables

High performance ECG signal acquisition

Synchronized PPG, ECG for BP estimation

Heart-rate variability (HRV)

Pulse oximetry (SpO2) measurements


Associated Products

Model

Brand

Package

Quantity

Describe

AFE5805ZCF

TI

NFBGA-135

3000

An 8-channel low-noise analog front-end chip for ultrasonic waves

AFE5809ZCF

TI

NFBGA-135

3000

14-bit, 12-bit, 65MSPS, 158mW/CH fully integrated 8-channel ultrasonic analog front ends

AFE58JD16ZAV

TI

NFBGA-289

2500

Low-power, low-noise 16-channel ultrasonic analog front end (AFE)

AFE58JD48ZAV

TI

NFBGA-289

2500

A 12.8GB JESD204B ultrasonic AFE with 16-bit 125MSPS (ADC)

AFE5832LPZAV

TI

NFBGA-289

3000

A low-power 32-channel ultrasonic AFE with LVDS interface and CW passive mixer

AFE4410YZR

TI

DSBGA-30

3000

A low-power, ultra-small integrated AFE with FIFO function

AFE44S30YZR

TI

DSBGA-30

3000

Ultra-low power integrated analog front-end (AFE) with FIFO and SPI

AFE44I30YZR

TI

DSBGA-30

3000

Ultra-low power integrated analog front-end (AFE) with FIFO and I2C

AFE5401RGCTEP

TI

VQFN-64

2000

Quad-Channel Analog Front-End for Automotive Radar Baseband Receiver

AFE4462YBGR

TI

DSBGA-36

2000

Ultra-Small Integrated AFE for Optical Bio-Sensing
