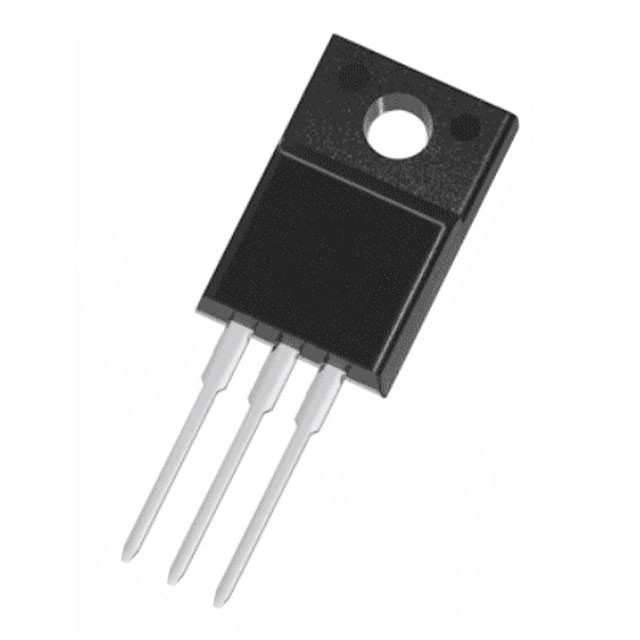

IPA95R450PFD7 950V CoolMOS™ PFD7 SJ MOSFET uses Super Junction (SJ) technology. SJ technology is advanced, easy to use and offers best-in-class performance, making it ideal for lighting and industrial SMPS applications. PFDJ integrates ultrafast body diodes that can be used in resonant topologies with the lowest reverse recovery charge (Qrr). The product has excellent hard commutation robustness and can be used in resonant topologies. This device provides an additional safety margin for designs with higher bus voltages.

specification

FET type: N channel

Technology: MOSFET (Metal oxide)

Drain-source voltage (Vdss) : 950 V

Current at 25°C - Continuous Drain (Id) : 7.2A (Tc)

Drive voltage (Max Rds On, min Rds On) : 10V

On-resistance (Max.) at different ids and Vgs: 450 milliohm @ 7.2A, 10V

Vgs(th) (Max.) for different ids: 3.5V@360µA

Gate charge (Qg) at different Vgs (Max.) : 43 NC-@10 V

Vgs (Max.) : ±20V

Input capacitance (Ciss) at different Vds (Max.) : 1230 PF-@400 V

FET function: -

Power dissipation (Max) : 30W (Tc)

Operating temperature: -55°C ~ 150°C (TJ)

Installation type: Through hole

Supplier device package: PG-TO220-3-313

Package/housing: TO-220-3 complete package
