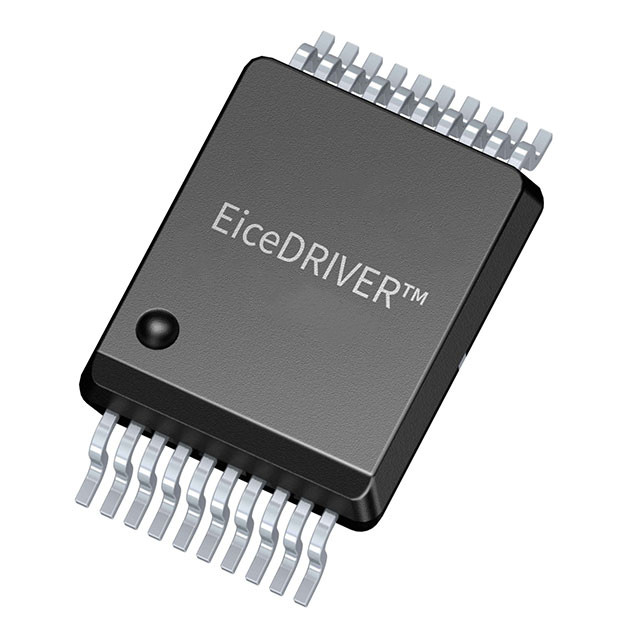

The EiceDRIVER™ 1EDI3023AS is a licensed single-channel high voltage gate driver optimized with IGBT technology. The device is based on Infineon's coreless transformer (CT) technology, which provides current insulation between low and high voltage domains. The device is designed to support 400 V, 600 V and 1200 V IGBT technologies.

specification

Technology: Magnetic coupling

Number of channels: 1

Voltage - isolation: 5700Vrms

Common-mode transient immunity (min) : 150kV/µs

Propagation delay tpLH/tpHL (maximum) : 120ns, 120ns

Pulse width distortion (Max) : 20ns

Rise/fall time (typical) : 55ns, 45ns (Max)

Current - Output high, low: 12A, 12A

Current - Peak output: 12A

Voltage - Forward (Vf) (typical value) : -

Voltage output power supply: 3V ~ 5.5V

Class: Automobile class

Qualification: AEC-Q100

Operating temperature: -40°C ~ 150°C

Mounting type: Surface mount type

Package/housing: 20-BFSOP (0.295", 7.50mm wide)

Supplier device package: PG-DSO-20-91

Certification body: UL, VDE

Basic product number: 1EDI3023
