Trade Name:ADUM3224WBRZ
Data Manual:ADUM3224WBRZ.pdf
Brand:ADI
Particular Year:23+

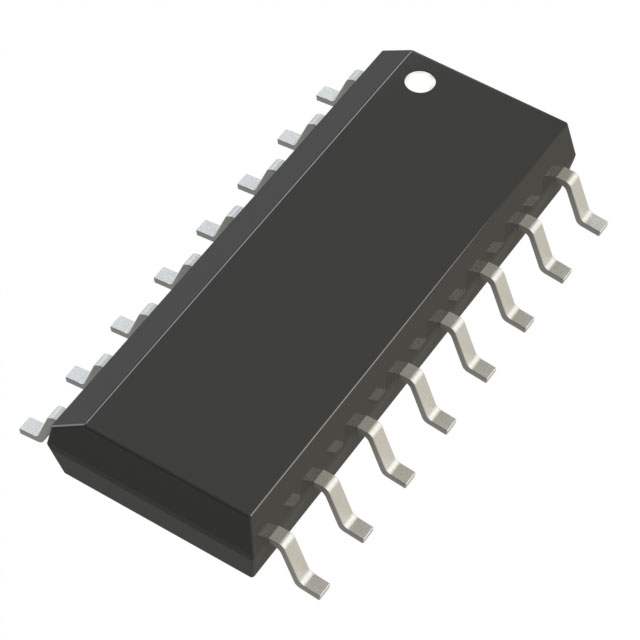

Package:16-SOIC
Delivery Date:New and Original
Stock: 2000pcs
ADUM3224WBRZ - 4A 2 Channel Isolated Precision Half-Bridge Driver
Product Description
ADUM3224WBRZ is 4A isolated, half-bridge gate drivers, provide independent and isolated high-side and low-side outputs. The ADuM3224 provides 3000 V rms isolation in the narrow-body, 16-lead SOIC package. Combining high speed CMOS and monolithic transformer technology, these isolation components provide outstanding performance characteristics superior to the alternatives, such as the combination of pulse transformers and gate drivers.
Product Features
4A peak output current
Working voltage
High-side or low-side relative to input: 537 V peak
High frequency operation: 1 MHz maximum
3.3 V to 5 V CMOS input logic
4.5 V to 18 V output drive
CMOS input logic levels
High common-mode transient immunity: >25 kV/μs
Enhanced system-level ESD performance per IEC 61000-4-x
High junction temperature operation: 125°C
Applications
Switching power supplies
Isolated IGBT/MOSFET gate drives
Industrial inverters
