The ADP1850ACPZ is a configurable dual-output or dual-phase single-output dc-to-dc synchronous buck controller capable of operating from commonly used 3.3 V to 12 V (up to 20 V) voltage inputs. The device operates in current mode for improved transient response capability transient response and uses valley current sensing for enhanced noise immunity. The architecture enables precise current sharing between interleaved phases Precise current sharing between interleaved phases for high current output. Features synchronisation to eliminate frequency hopping between switching devices; provides precise tracking capability between power supplies includes precise enable for simple, robust sequencing.

Product Characteristics

Output Type: Transistor Driver

Function: Buck

Output Configuration: Positive

Topology: Buck

Number of Outputs: 2

Number of Output Stages: 2

Voltage - Supply (Vcc/Vdd): 2.75V ~ 20V

Frequency - Switching: 200kHz ~ 1.5MHz

Duty Cycle (Maximum) 90%

Synchronous Rectifier: Yes

Clock Synchronisation: Yes

Control Characteristics: Current Limit, Turn On, Frequency Control, Power, Soft Start, Tracking

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

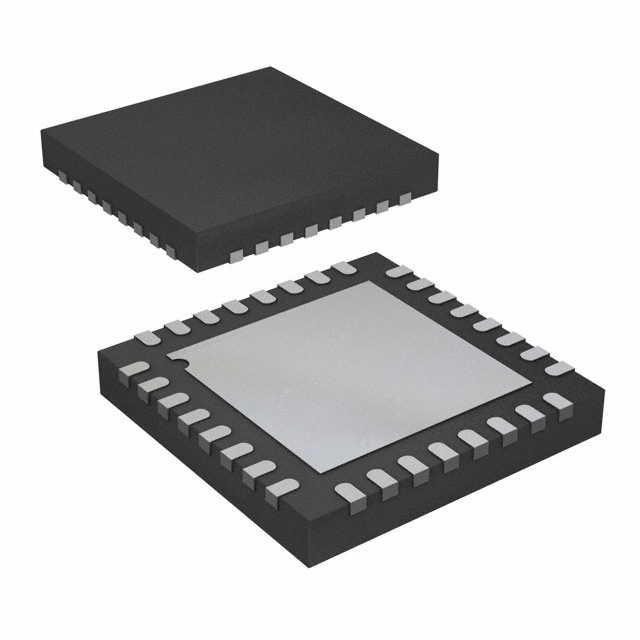

Package/case: 32-WFQFN (with open pads), CSP

Delivery includes: 32-LFCSP (5x5)

Applications

● High-current single and dual output intermediate buses and

● High-current single and dual output intermediate bus and point-of-load converters

● The following converters are included

● Point-of-load power supplies

● Telecom base stations and networks

● Consumer

● Industrial and instrumentation

● Healthcare and medical
