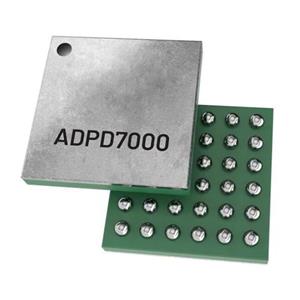

For picture reference, please see the specifications
< >

Commodity Model:ADPD7000BCBZR7

Trade Name:ADPD7000BCBZR7

Data Manual:ADPD7000BCBZR7.pdf

Brand:ADI

Particular Year:23+

Package:UFBGA-36

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
ADPD7000BCBZR7
Package
UFBGA-36
Describe
4 Channel AFE 12 Bit 36-WLCSP (2.8x2.56)

Product Description

ADPD7000BCBZR7 is a highly integrated analog front end (AFE) designed for measuring various vital signals. The optical channel is designed as an optical transceiver, stimulating up to eight light emitting diodes (LEDs) and measuring the return signal on up to four separate current inputs.


Product Features

Multimodal analog front end

Optical channel

4 input channels with multiple operation modes for various sensor measurements

4-channel processing with simultaneous sampling

12 programmable time slots for synchronized sensor measurements

Flexible input multiplexing to support single-ended sensor measurements

8 LED drivers, 2 of which can be driven simultaneously

Flexible sampling rate from 0.004 Hz to 9 kHz using internal oscillators

AC ambient light rejection: 78 dB up to 100 Hz

400 mA total LED peak drive current

Individual ambient cancellation DAC at TIA input with 9-bit control up to 300 μA

Individual LED DC cancellation DAC at TIA input with 7-bit control up to 190 μA

ECG channel

<1 µV RMS RTI noise at diagnosis bandwidth

High input impedance 20 GΩ

Accepts up to ±1.2 V of DC differential input range

CMRR: 115 dB

Flexible 4 electrode configurations to support various applications

Both AC lead off detection and DC lead off detection

Support always on, low power, lead on detection
