AD4110-1BCPZ - Universal Input Analog Front End with 24-Bit ADC for Industrial Process Control Systems

Product Description

AD4110-1BCPZ is a complete, single-channel, universal input analog-to-digital front end for industrial process control systems where sensor type flexibility is required. The high voltage input is fully software configurable for current or voltage signals and allows direct interface to all standard industrial analog signal sources such as ±20 mA, ±4 mA to ±20 mA, ±10 V, and all thermocouple types.

Product Features

Replaces existing 3-terminal solutions

Field power supply for loop powered current sensors

HV input overvoltage protected up to ±30 V

Internal current sense resistor

Option to use external current sense resistor

Current limited input even with no power supply

Diagnostic functions for overrange and open wire detect

Fast and flexible output data rates: 5 SPS to 125 kSPS

Simultaneous 50 Hz and 60 Hz rejection

Serial interface for configuration and diagnostics 4-wire interface compatible with SPI®, QSPI™, MICROWIRE®, and DSP

Power supply: ±12 V to ±20 V, +5 V

Operating temperature: −40°C to +105°C

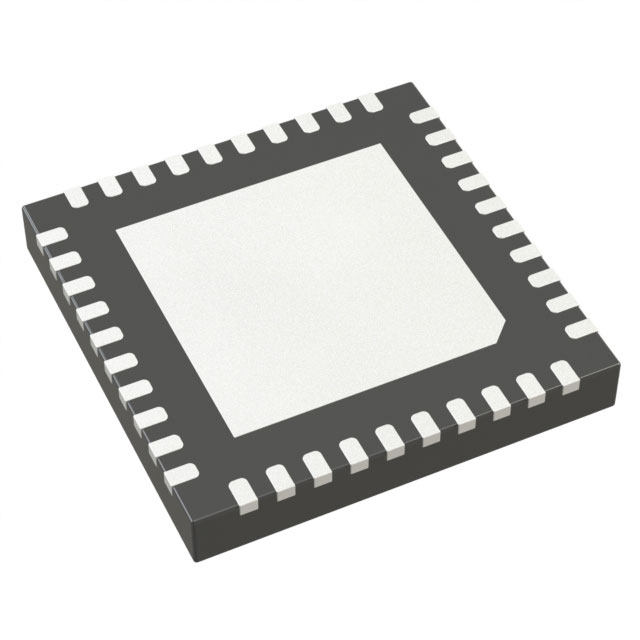

Package: 40-lead, 6 mm × 6 mm LFCSP

Applications

Process control and industrial automation

Remote and distributed control systems

Instrumentation and measurement

Sensor and data acquisition
