The LTC7852EUFD-1 is a six-phase, dual-output current-mode synchronous step-down switching regulator that can be used with external power devices such as DrMOS, power modules or discrete N-channel MOSFETs and external power devices. Its flexible design allows for 1, 2, 3, 4, 5, and 6 phase configurations. A unique feature enhances the signal-to-noise ratio of the current-sense signal, allowing the use of inductive signals with very low DC winding resistance for maximum efficiency. The controller achieves the shortest on-time of only 40ns, allowing high switching frequencies to be used at high step frequencies.

Product Characteristics

Output Type: Transistor Driver

Function: Buck

Output Configuration: Positive

Topology: Buck

Number of Outputs: 2

Number of Output Stages: 6

Voltage - Supply (Vcc/Vdd): 4.5V ~ 5.5V

Frequency - Switching: 200kHz ~ 1.2MHz

Synchronous Rectifier: Yes

Clock Synchronisation: No

Control Characteristics: Current Limit, Turn On, Frequency Control, Power, Ramp, Soft Start, Tracking

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

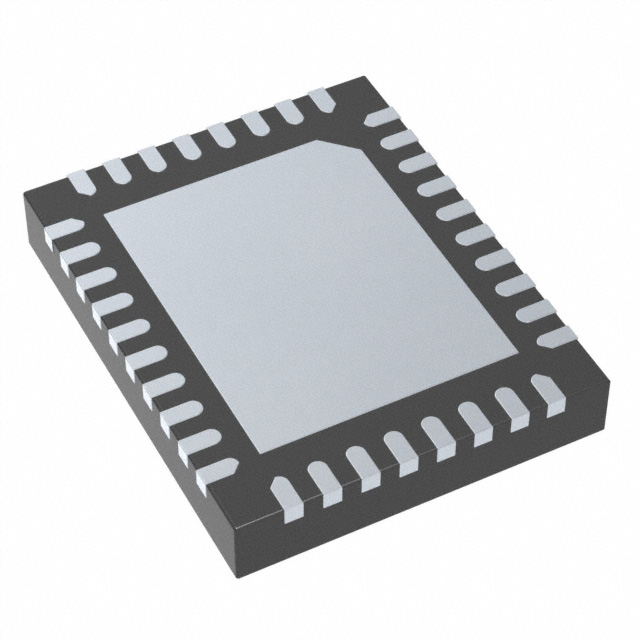

Package/case: 36-WFQFN (with open area)

Delivery incl.: 36-WFQFN (4x5)

Applications

● Computer systems

● Telecom and datacom systems

● DC distribution systems
