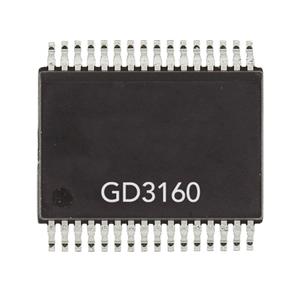

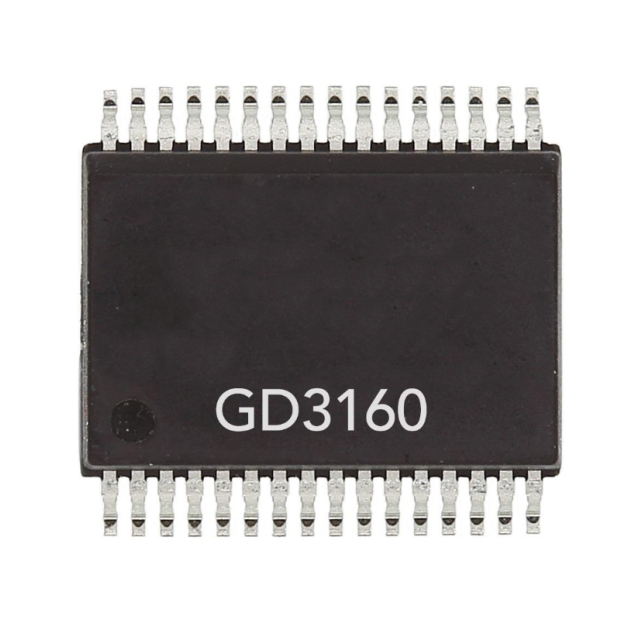

The MGD3160AM535EKR2 is an advanced single-channel gate driver designed to drive the latest SiC and IGBT modules for xEV traction inverters, OBCs and DC-DC converters. Offering integrated galvanic isolation, programmable interface via SPI, and advanced programmable protections such as over-temperature, desaturation, and current-sense protection, the GD3160 is capable of driving SiC MOSFET and IGBT gates directly: its high gate current and programmable gate drive voltage features provide high performance switching, low dynamic on-resistance, and rail-to-rail gate voltage control.

Product Attributes

Output Configuration: Half Bridge

Application: DC-DC converter

Interface: PWM, SPI

Load Type: Inductive, Capacitive, Resistive

Technology: Power MOSFET, IGBT

On-resistance (typical): 500 mOhm LS, 500 mOhm HS

Current - Output/Channel: 15A

Current - Peak Output: 15A

Voltage - Supply: 4.5V ~ 40V

Voltage - Load: 4.5V ~ 40V

Operating Temperature: -40°C ~ 150°C (TJ)

Rating: Automotive Grade

Fault Protection: Over Temperature, Short Circuit

Mounting Type: Surface Mount

Qualification: AEC-Q100

Package/Housing: 32-BSSOP (0.295", 7.50mm wide)

Supplier Device Package: 32-SOIC
