Service Telephone:86-755-83294757

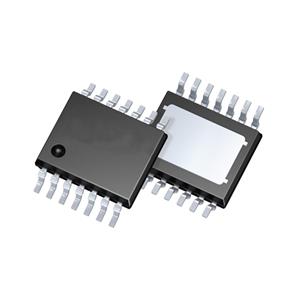

Trade Name:TLE94103EPXUMA1
Data Manual:TLE94103EPXUMA1.pdf
Brand:INFINEON
Particular Year:23+
Package:14-TSSOP
Delivery Date:New and Original
Stock: 1000pcs
The TLE94103EPXUMA1 is a protected triple half-bridge driver designed for automotive motion control applications such as side mirror X-Y adjustment. It is part of a larger family of half-bridge drivers available from three outputs to twelve outputs with direct or SPI interfaces. The half-bridge driver is designed to drive DC motor loads in sequential or parallel mode. The operating modes forward (ccw), reverse (ccw), braking and high impedance modes are controlled by a 16-bit SPI interface.
Product Attributes
Output Configuration: Half Bridge (3)
Application: DC Motor, General Purpose
Interface: SPI
Load Type: Inductive
Technology: Power MOSFET
Switching Resistance (typical): 825 mOhm LS, 825 mOhm HS 825 mOhm LS, 825 mOhm HS.
Current - Output/Channel: 2A
Voltage - Supply: 3V ~ 5.5V
Voltage - Load: 5.5V ~ 20V
Operating Temperature: -40°C ~ 150°C (TJ)
Fault Protection: Current Limit, Thermal, Short Circuit, UVLO
Mounting Type: Surface Mount
Package/case: 14-TSSOP (0.154", 3.90 mm wide) bare pads
Delivery includes: PG-TSDSO-14
APPLICATIONS
● HVAC flip-flop DC motors
● Monostable and bistable relays
● Side mirror x-y adjustment
