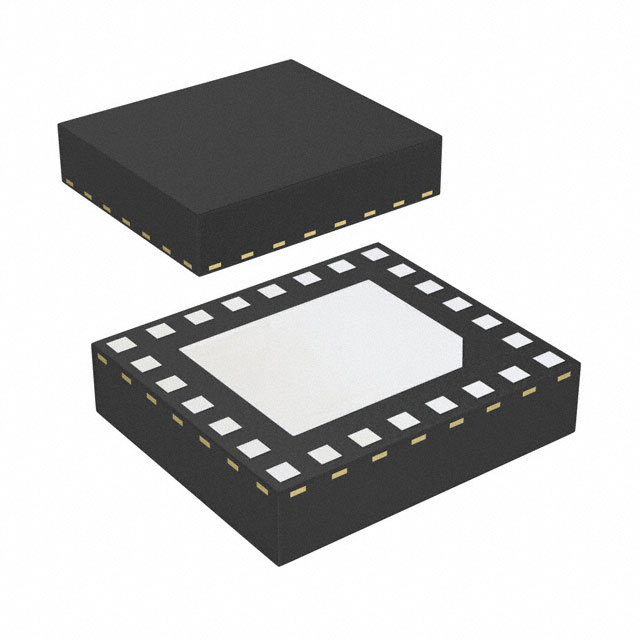

The IRSM808-105MH is a 10A, 500V half-bridge module designed for advanced appliance motor drive applications such as energy-efficient fans and pumps.IR's technology provides an extremely compact, high-performance half-bridge topology in an isolated package. The advanced IPM combines IR's low RDS(on) trench FREDFET technology with the industry's benchmark half-bridge high-voltage, ruggedised driver in a small PQFN package. Measuring only 8x9mm with integrated bootstrap, the compact size of this surface mount package makes it suitable for space-constrained applications.

Functional Features

● Integrated gate driver and bootstrap function

● Suitable for sinusoidal modulation applications

● Low RDS (conduction) channel FREDFETs

● Dual channel undervoltage lockout

● Matched propagation delays on all channels

● Optimised dV/dt for loss and EMI trade-offs

● Compatible with 3.3V input logic

● High-level active HIN and low-level active LIN

● Motor power range 80-200W

● Isolation down to 1500VRMS

● ROHS compliant
