The DHP1050N10N5AUMA1 power module supports current ranges from 100A to 600A and voltages of 600V/650V/1200V and 1700V. Excellent mechanical ruggedness, power cycling capability, and PressFIT pinning options are available. The ability to TIM makes this device a reliable and cost-effective solution for drives, CAVs, wind turbines, solar and hybrid vehicle applications. The 3-module uses 3-stage, half-bridge, H-bridge and chopper topologies for efficient inverter designs.

Functions

● Symmetrical half-bridge 100V MOSFETs with integrated level-shifting drivers

● 100 V OptiMOS™ 5 power MOSFET technology

● (DHP0050N10N5) Individually controlled high and low side gate drivers

● (DHP1050N10N5) Differential inputs with inherent breakdown protection for ultra-robustness

● Up to 20 A current handling capability

● 120 V on-chip bootstrap diode

● Maximum VDD voltage 20 V

● Supports operating frequencies up to 1 MHz

● VDD/VHB undervoltage lockout (UVLO)

● -10 V to 20 V input pin capability for enhanced robustness

● ( DHP1050N10N5) -8 V to 15 V input pin common-mode rejection

● -5 A output pin reverse current capability

● 8 V to 17 V supply voltage operating range

● Fast propagation delay

● < 6 ns Delay matching between high and low side drivers

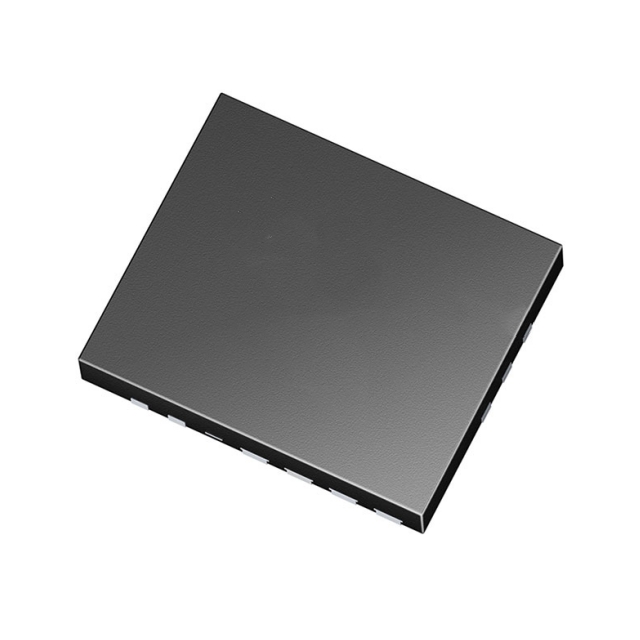

● 7.5 mm x 6.0 mm x 0.9 mm PQFN small form factor package

● RoHS-compliant lead-free package
