The BTN9970LVAUMA1 high-current motor driver pairs a p-channel high-side switch with an n-channel low-voltage side switch to form a half-bridge and adds an integrated circuit to protect the device. The IC also features microprocessor-compatible logic level inputs, current-sense diagnostics, slew rate adjustment, and dead-time generation. Over-temperature, over-voltage, under-voltage, over-current, and short-circuit protection are part of the package. This multi-chip half-bridge configuration has two distinctive features: it generates neither charge-pump radiation nor cross-currents. The half-bridge can be combined with other devices to form H-bridge and three-phase drive configurations.

Product Characteristics

Application: DC motors, general purpose

Interface: Logic, PWM

Load Type: Capacitive and Resistive

Technology: MOSFET (Metal Oxide)

Voltage - Supply: 8V ~ 18V

Voltage - Load: 8V ~ 18V

Operating Temperature: -40°C ~ 150°C (TJ)

Function: Charge Pump

Fault Protection: Overcurrent, Overheat, Short Circuit, UVLO

Mounting Type: Surface Mount

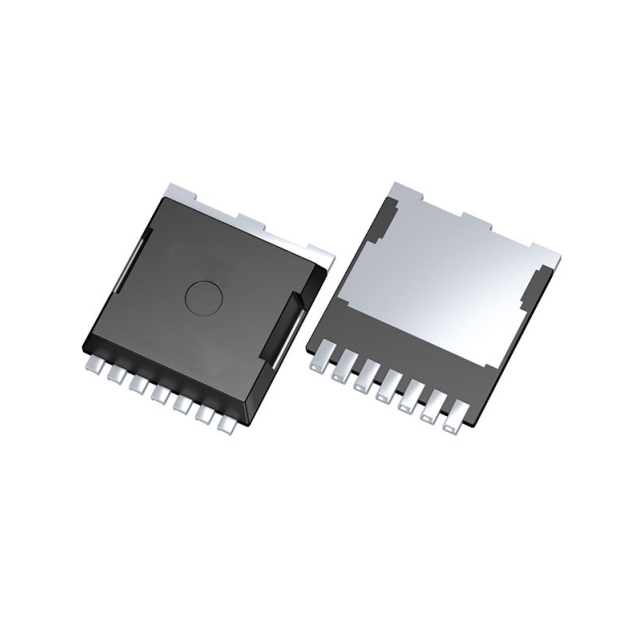

Package/Enclosure: 7-PowerSFN

Power Supply Included: PG-HSOF-7-1

Applications

● Automotive 12 V Brushed DC Motors

● Fuel pumps

● Electric liftgate

● HVAC blowers
