The TDA21535AUMA1 integrated power stage contains a low quiescent current synchronous buck gate driver IC co-packaged with control and synchronous MOSFETs and an active diode structure for Schottky-like low Vsd with minimal reverse recovery charge. The package is optimised for PCB layout, heat transfer, and driver/MOSFET control timing to minimise switch node ringing while following layout guidelines. Paired gate driver and MOSFET combinations enable higher efficiency at lower output voltages.

Features

● Integrated driver, active diode, high-side MOSFETs, and low-side MOSFETs

● Input voltage range of 4.25 V to 16 V

● VCC supply voltage range of 4.25 V to 5.5 V

● Output voltage range of 0.225 V to 5.5 V

● Output current capability of 35 A

● Operating frequency up to 1.5 MHz

● VCC undervoltage lockout (UVLO)

● Bootstrap undervoltage protection

● On-chip MOSFET current sensing and reporting with 5 µA/A gain

● Over-temperature protection and thermal shutdown

● Cycle-by-cycle overcurrent protection and tagging

● High-side MOSFET short-circuit detection and tagging

● Bootstrap capacitor auto-recharge

● Compatible with 3.3 V tri-state PWM inputs

● Automatic sleep mode after 20 µs of PWM tristate (1.7 mA typ)

● Deep sleep mode with EN= low (32 µA typ) for power saving

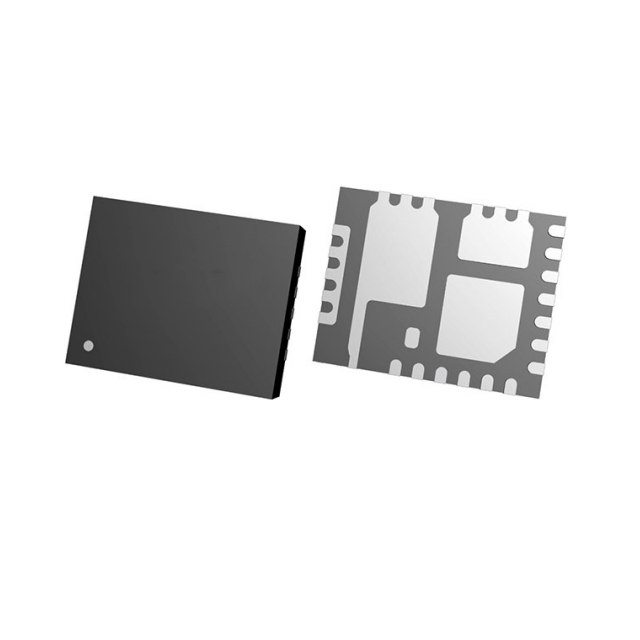

● Small 4 mm x 5 mm x 0.9 mm PQFN package

● RoHS-compliant lead-free package
