The PTN36043ABXY is a small, low-power 2-channel differential 2-1 active multiplexer/demultiplexer switch that integrates a first-generation, ultra-high-speed USB 3.1 (also known as USB 3.0) adapter driver IC that switches the two differential signals to either of the two positions. The active switches offer optimised performance and low crosstalk to meet the requirements of high-speed serial interfaces for USB Class C connectors. Supports expansion of existing high-speed ports for ultra-low power consumption.

Product Features

Switching Circuit: SPDT

Multiplexer/Demultiplexer Circuit: 2:1

Number of circuits: 2

Voltage - Supply, Single (V+): 1.7V ~ 1.9V

Leakage Current (IS(off)) (Max): 6µA

Crosstalk: -50 dB @ 2.5 GHz

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

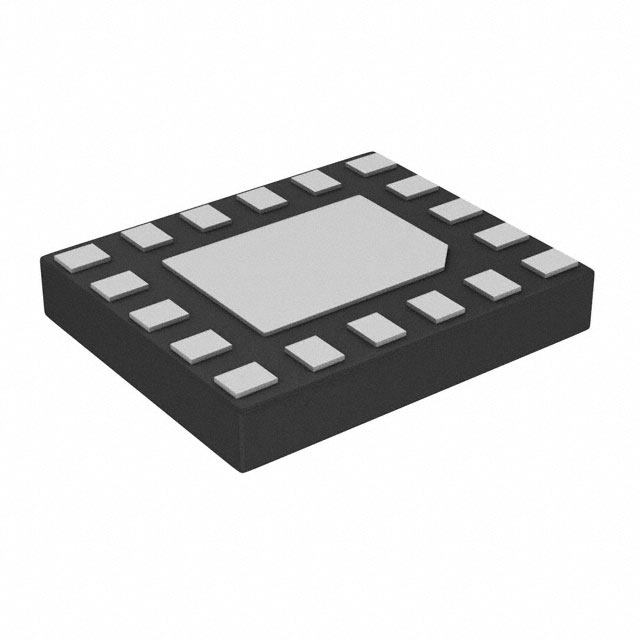

Package/case: 18-XFQFN with open area

Scope of delivery: 18-X2QFN (2.4x2)

Applications

● USB 3.1 Gen 1 applications with USB Type-C connectors

● Smartphones, tablets/mobile devices

● Desktop/laptop computers

● Docking stations

● USB 3.1 Gen 1 peripherals such as flat panel displays, consumer/storage devices, printers, or hubs/repeaters that support USB 3.1 Gen 1
