The MSP430FR5962IRGZR 16-bit microcontroller takes low power consumption and performance to new levels with a unique Low Energy accelerator (LEA) for digital signal processing. The accelerator delivers up to 40 times the performance of Arm® Cortex®-M0+ MCUS and can assist developers in efficiently processing data using complex functions such as FFT, finite Impulse response (FIR) and matrix multiplication. Typical applications include power grid infrastructure, factory automation control, building automation, wearable fitness activity monitors, and wearable electronics.

Technical parameter

Core processor: MSP430 CPUXV2

Kernel specification: 16 bits

Speed: 16MHz

Connection capability: I²C, IrDA, SPI, UART/USART

Peripherals: Undervoltage detection/reset, DMA, POR, PWM, WDT

Number of I/ OS: 40

Program storage capacity: 128KB (128K x 8)

Program memory type: FRAM

EEPROM capacity: -

RAM size: 8K x 8

Voltage - power supply (Vcc/Vdd) : 1.8V ~ 3.6V

Data converter: A/D 16x12b

Oscillator type: external, internal

Operating temperature: -40°C ~ 85°C (TA)

Mounting type: Surface mount type

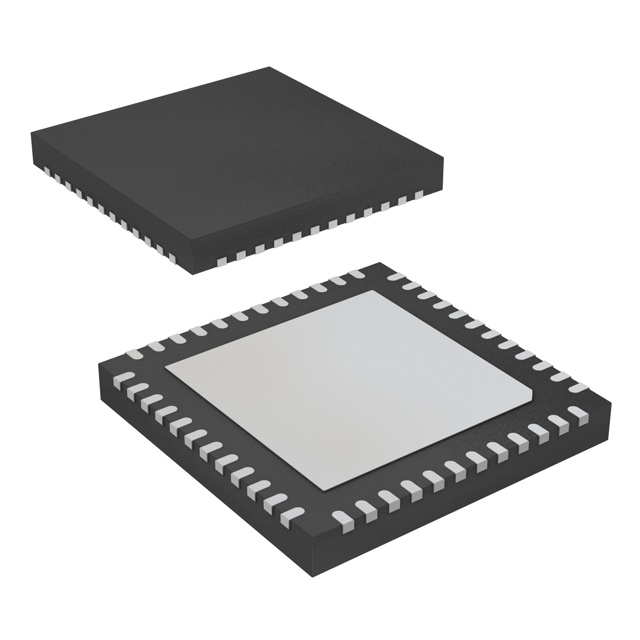

Package/housing: 48-VFQFN bare pad

Supplier Package: 48-VQFN (7x7)

Basic product number: MSP430FR5962

• 1.Is the inventory and price seen on the platform accurate?

  A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.

• 2.Are all our products genuine?

  A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.

• 3.Can you provide the qualification certificate of the original factory or agent?

  A: at present, our self-employed brands TI，ST，ADI，NXP，LATTICE，CYPRESS，INFINEON，XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.

• 4.Can I make an inquiry through the company's website?

  A: You can inquire through the website, or by phone and email.

• 5.When can I deliver the goods after placing an order? How long will it take to get there?

  A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.

• 6.Can the company issue an invoice?

  A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
