Trade Name:FXLS93220AES
Data Manual:FXLS93220AES.pdf
Brand:NXP
Particular Year:23+
Package:16-HLQFNR
Delivery Date:New and Original
Stock: 1000pcs

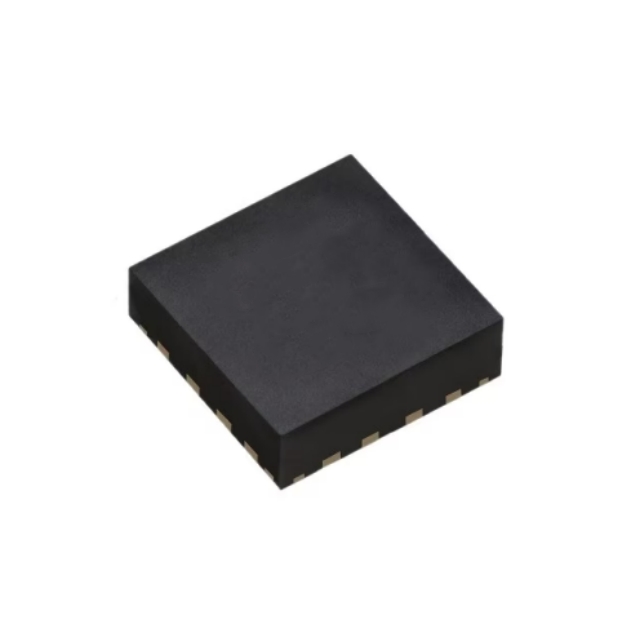

The FXLS93220AES is the latest generation of airbag crash sensors from NXP. These devices are designed using NXP's proprietary UMEMS sensing technology combined with a signal conditioning ASIC in a QFN 4x4x1.45mm package. A PSI5 user interface is available. They can measure accelerations from +/-15.5g to +/-500g in single or dual axis independent configurations. The embedded DSP provides fully programmable digital high pass and low pass filtering.
Function
● X-, Y-, or Z-axis
● Medium gram range of ± 15.5 g to ± 150 g nominal full scale range
● High g range of ± 50 g to ± 500 g nominal full scale range
● Operating temperature range of -40 °C to 125 °C
● DSI3 compatible
● Discovery mode for physical location identification
● High-side bus switch output driver
● Supports command and response modes for device configuration
● Supports periodic data collection mode for sensor data transfer
● Supports background diagnostic mode during periodic data collection mode
● Compatible with PSI5 version 2.1
Applications
● Automotive electronics
● Airbag and crash detection
● Crash/collision detection
