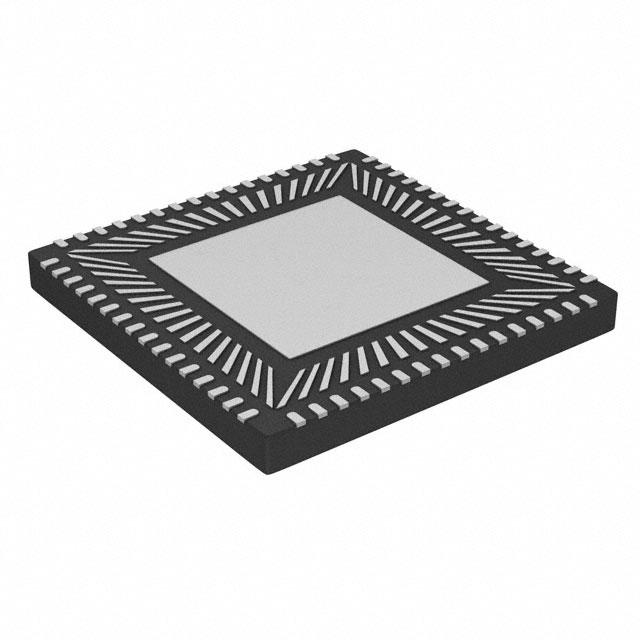

The NAFE13188B40BSE is a highly configurable, industrial-grade, multi-channel, general-purpose input analogue front-end (AFE) that meets high-precision measurement requirements. The device integrates a low-leakage, high-voltage (HV) fast multiplexer, low offset and low drift programmable gain amplifiers (PGAs) and buffers, a high data rate 24-bit Delta-Sigma analogue-to-digital converter (ADC), accurate voltage and current excitation sources, and a low-drift voltage reference. All high-voltage analogue pins are internally diode-protected to prevent electromagnetic compatibility (EMC) and miswiring conditions.The NAFE13388 is equipped with a variety of diagnostic and power-supply monitoring circuits for status monitoring and anomaly detection. Two accurate calibration voltage sources are provided for end-to-end system self-calibration and predictive maintenance.

The NAFE13388 series is designed for use with programmable logic controllers (PLCs), I/O modules, data loggers, instrumentation, and high-precision sensor and data acquisition systems.

Key Features

±3⁰C built-in temperature sensor

Precise excitation voltage and current sources

Built-in oscillator accuracy of 0.2% at room temperature

Diagnostic system for fault detection and prediction

CRC error detection

10 GPIOs

32MHz SPI interface

Powerful 8kV HBM ESD and IEC61000-4-5 2kV surge protection

Power supply: ±7V to ±24V for high voltage, 3.3V for low voltage

Power consumption: 150mW in low-power mode, 160mW in high-speed mode

Operating temperature range TA: -40⁰C to +125⁰C

Package: 64-pin, 9mmx9mmx0.85mm HVQFN

Applications

Industrial control

Programmable Logic Controllers (PLCs) and Remote I/O

Industrial automation and process control

Data acquisition systems
