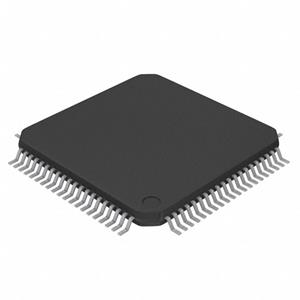

The MSP430FR5994IPNR mixed-signal microcontrollers (MCUs) feature a unique low-power accelerator (LEA) for digital signal processing that takes its low-power features and device performance to new heights. With up to 40 times the performance of ARM® Cortex®-M0+ MCUs, this accelerator assists developers in efficiently processing data using complex functions such as FFT, FIR and matrix multiplication. The freely available optimised DSP libraries can be implemented without the need for DSP experts. In addition, the devices feature up to 256KB of FRAM unified standard memory, providing more space for advanced applications and more flexibility to implement over-the-air firmware updates.

Features

- Embedded microcontroller

- 16-bit RISC architecture with up to 16MHz clock frequency

- Up to 256KB of ferroelectric random access memory (FRAM)

- Ultra-low power writes

- 125ns fast writes per word (64KB in 4ms)

- Flexible allocation of data and application code in memory

- 1015 write cycle persistence

- Radiation and non-magnetic

- Wide supply voltage range of 3.6V to 1.8V

- Optimised ultra-low power mode

- Operating mode: 118µA/MHz

- VLO (LPM3) in standby mode: 500nA

- Real-time clock (RTC) in standby mode (LPM3.5): 350nA

- Shutdown current (LPM4.5): 45nA

- Low-power accelerator (LEA) for signal processing (MSP430FR599x only)

- CPU-independent operation

- Shares 4KB of RAM with CPU

- 256-point high-efficiency complex Fast Fourier Transform (FFT): Up to 10 times faster than Arm® Cortex® -M0+ cores.

-M0+ core.

- Intelligent digital peripherals

- 32-bit hardware multiplier (MPY)

- 6-channel internal direct memory access (DMA)

- RTC with calendar and alarm functions

- Six 16-bit timers with up to seven capture/compare registers each

- 32-bit and 16-bit cyclic redundancy check (CRC)

- High Performance Analogue

- 16-channel analogue comparator

- 12-bit analogue-to-digital converter (ADC) with windowed comparator, internal reference and sample hold, and up to 20 external input channels

Applications

- Grid infrastructure

- Factory automation and control

- Building automation

- Portable medical and fitness equipment

- Wearable Electronics
