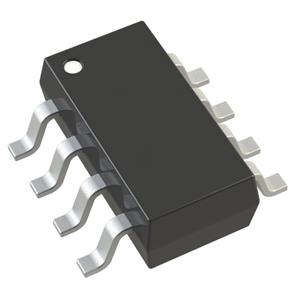

The LTC6259HTS8 is a dual-channel operational amplifier with low noise, low power, low supply voltage, and rail-to-rail inputs and outputs. These devices provide stable unit gain with or without capacitive loads. They feature a 1.3MHz gain-bandwidth product, a 0.24V/μs slew rate, and consume only 20μA of supply current per amplifier when operating from a 1.8V to 5.25V supply voltage.

Features

Gain bandwidth product: 1.3MHz

Low quiescent current: 20μA

C-Load™ op amps drive all capacitive loads

Out-of-phase voltage: 400μV (max)

Rail-to-rail inputs and outputs

Supply voltage range: 1.8V to 5.25V

EMI rejection ratio: 45dB (at 1GHz)

Input bias current: 75nA (max)

CMRR/PSRR: 95dB/90dB

Shutdown Current: 7μA (max)

Operating temperature range: -40°C to 125°C

Dual-channel devices in 8-pin MS8, MS10, TS0T-23, 2mm × 2mm DFN packages

Applications

Micropower active filters

Portable instrumentation

Battery- or solar-powered systems

Automotive electronics
