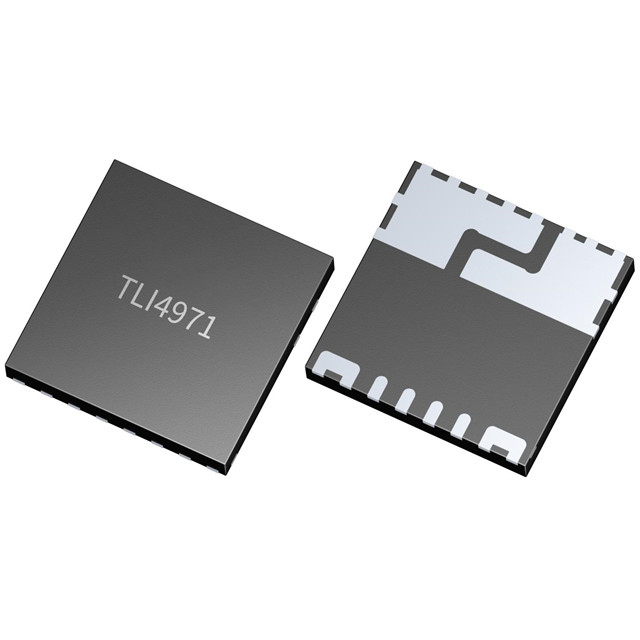

The TLI4971A050T5E0001 is a new sensor that is pre-programmed for a 50A measurement range. In medium current applications, this coreless magnetic current sensor solution can be used for both AC and DC measurements. Thanks to its 240kHz bandwidth, fast analog interface and dual-channel fast overcurrent detection, as well as high-precision current measurement ensure a high degree of flexibility for many application use cases.

Product attribute

Used for measurement: AC/DC

Sensor type: Hall effect, open loop

Current - Detection: 50A

Number of channels: 1

Output: ratio, voltage

Sensitivity: 24mV/A

Frequency: DC ~ 240kHz

Linearity: ±2.25%

Accuracy: ±3.45%

Voltage - Power supply: 3.1V ~ 3.5V

Response time: 250ns

Current - Power supply (Max.) : 25mA

Operating temperature: -40°C ~ 105°C

Class: Automobile class

Qualification: AEC-Q100

Polarization: unidirectional

Mounting type: Surface mount type

Package/housing: 8-PowerTDFN

Applications

Industrial inverters drive up to 690 VRMS

Battery management

Photovoltaic inverter

Power source

Overload or overcurrent detection in high voltage power supply circuits

White goods

Power tool

Robot application
