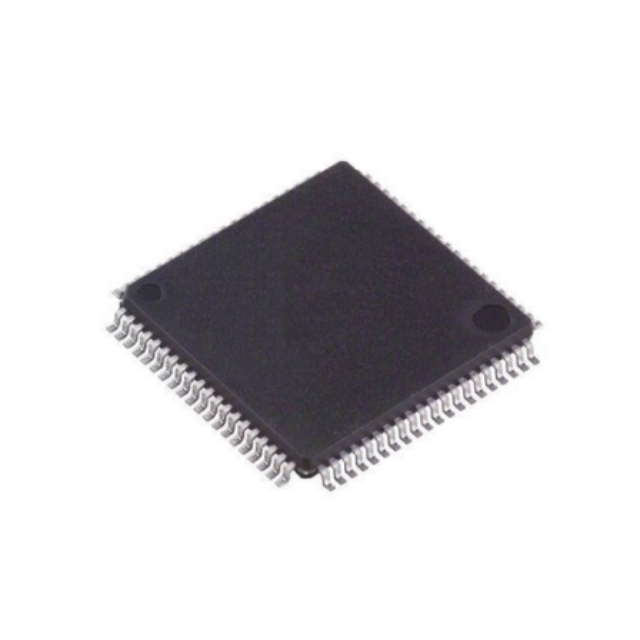

The AD8460BSVZ is a "bit-in, power-out" high-voltage, high-power, high-speed driver optimised for high output currents (up to ±1 A) and high voltage swing rates (up to ±1800 V/μs). Combines a 14-bit high-speed DAC, high voltage, high output current (HV-HI) and high output current (±1 A), and fault monitoring and protection circuitry. This makes them ideal for high power and ideal for high power applications such as arbitrary waveform generation (AWG).

Features

● Wide high-voltage power supply range: ±12 V to ±55 V

● High output capability

● Output voltage range: up to ±40 V

● High output current drive: 1 A continuous current

● High-voltage slew rate: ≥1800 V/µs at 1000 pF load

● Large signal bandwidth: 1 MHz

● Extensive programming and diagnostic capabilities

● Arbitrary waveform generation (AWG) mode with 14-bit resolution

● 16-stage analogue pattern generation (APG) mode

Applications

● Automatic Test Equipment (ATE)

● Display panel formation and testing

● Piezo drivers

● Programmable power supplies
