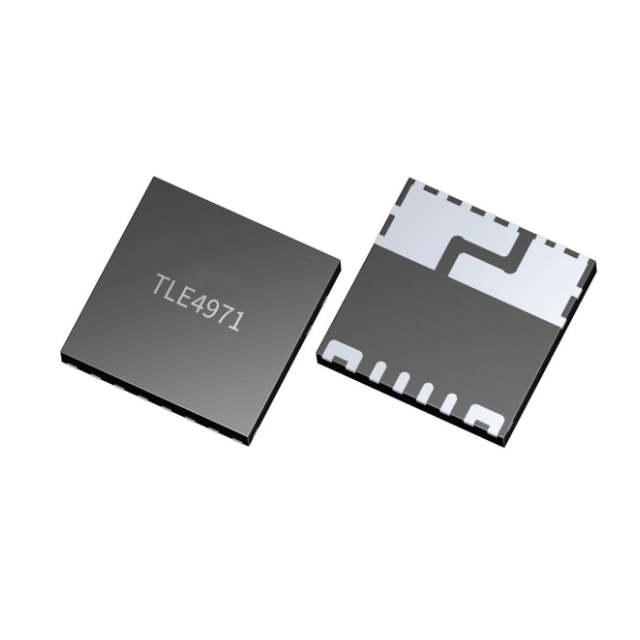

The TLE4971A075T5UE0001 is a high precision miniature coreless magnetic current sensor for AC and DC with analogue interface and two fast overcurrent detection outputs. Infineon's proven and robust monolithic Hall technology enables accurate and highly linear current measurements with a full scale range of ±120 A. The sensor has internal self-diagnostics. Typical applications are car chargers as well as any type of driver. The differential measurement principle permits significant suppression of stray magnetic fields and allows operation in harsh environments.

Features

● Integrated current rail with 220µΩ insertion resistance for ultra-low power loss

● Parasitic inductance less than 1nH

● Smallest form factor, 8x8mm, lead end detection

● Highly accurate, scalable DC and AC current sensing

● 210kHz bandwidth for a wide range of applications

● Extremely low temperature sensitivity error

● Galvanic isolation up to 1150V peak VIORM

● ISO26262-compliant documentation available

Applications

● Automotive electrical main drives

● Automotive powertrain

● Auxiliary drives

● High-voltage auxiliary drives for BEVs, PHEVs, etc.

● Battery main switches

● Current monitoring

● Industrial drives

● Industrial robots

● In-vehicle chargers, etc.

● Overload and overcurrent detection

● Photovoltaic inverters
