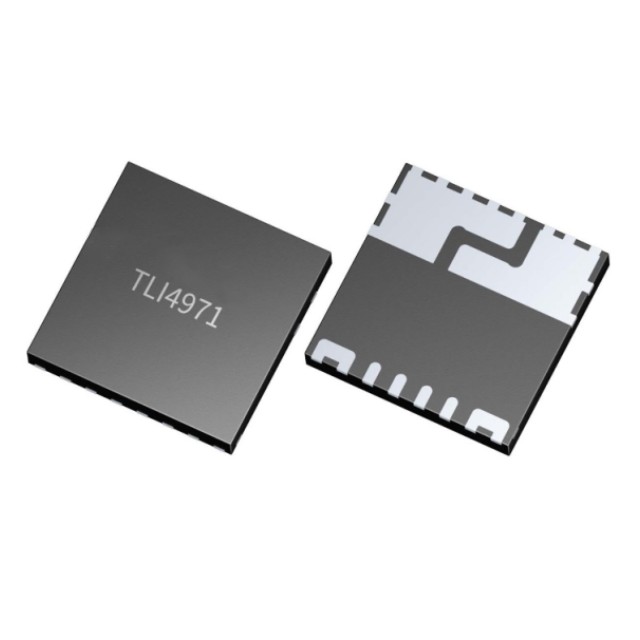

Trade Name:TLI4971A025T5E0001
Data Manual:TLI4971A025T5E0001.pdf
Brand:INFINEON
Particular Year:23+
Package:PG-TISON-8
Delivery Date:New and Original
Stock: 15000pcs
TLI4971A025T5E0001 is a high precision miniature coreless magnetic current sensor for AC and DC measurements with analog interface and two fast over-current detection outputs. Infineon's well-established and robust monolithic Hall technology enables accurate and highly linear measurement of currents with a full scale up to ±120A. All negative effects (saturation, hysteresis) commonly known from open loop sensors using flux concentration techniques are avoided. The sensor is equipped with internal self-diagnostic feature. Typical applications are electrical drives and general purpose inverters. The differential measurement principle allows great stray field suppression for operation in harsh environments. Two separate interface pins (OCD) provide a fast output signal in case a current exceeds a pre-set threshold. The sensor is shipped as a fully calibrated product without requiring any customer end-of-line calibration. All user-programmable parameters such as OCD thresholds, blanking times and output configuration modes are stored in an embedded EEPROM memory.
Features & Benefits
Integrated current rail with typical 220µΩ insertion resistance enables ultra-low power loss
Less than 1nH parasitic inductance of integrated current rail enables wide bandgap design
Bandwidth of 240kHz enables wide range of applications
8x8mm form factor
Very low sensitivity error over temperature
Galvanic functional isolation up to 1150V
VISO 3500V RMS agency type-tested for 60 seconds per UL1577
Differential sensing principle
Two independent ultrafast Over Current Detection outputs
