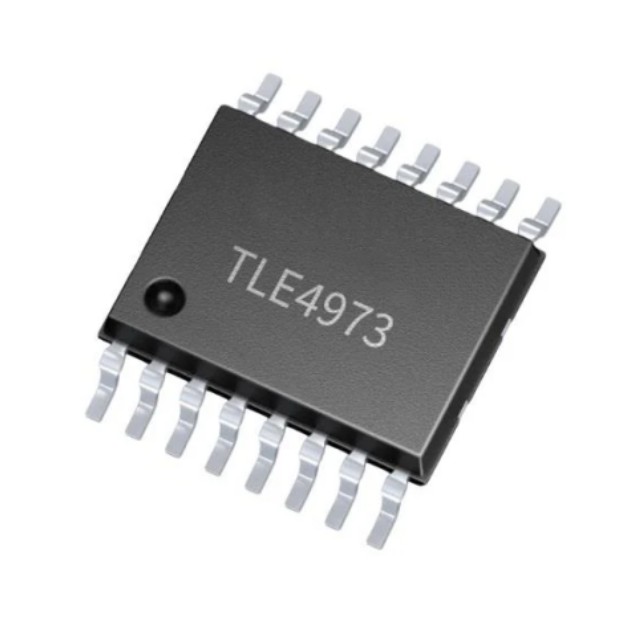

The TLE4973RE35D5S0001 is a high precision miniature coreless magnetic current sensor for AC and DC measurements with analogue interface and fast overcurrent detection output. It avoids the negative effects (saturation, hysteresis) of open-loop sensors with flux concentration technology. The differential measuring principle allows significant suppression of stray magnetic fields for operation in harsh environments. Highly configurable and customisable for a wide range of applications. User-programmable parameters such as OCD thresholds and sensitivity settings are stored in an embedded EEPROM. Device configuration is done locally via a single-wire UART interface called the Digital Control Diagnostic Interface (DCDI), which provides read/write access to the device's internal registers, allowing diagnostic modes to be triggered and temperature, OCD, and safety status to be read. It has auto-addressing capabilities and can handle up to eight slave devices on a single bus.

Features

Highly accurate, scalable DC and AC current detection

Full-scale range of ±34mT for current measurements above 1000A

5V supply voltage

Analogue outputs

ISO 26262 safe components, not compliant with safety requirements below ASIL B

Compact form factor and high power density

Very low sensitivity error over temperature and lifetime

Excellent offset stability over temperature and lifetime

Differential sensor principle ensures excellent rejection of magnetic stray fields

High bandwidth provides fast response time and low phase delay

Overcurrent detection with configurable threshold (max. detection time < 1.0µs)

EEPROM with integrated charge pump for in-system programming and end-of-line calibration without additional circuitry

Different packaging solutions optimise system integration in different wiring schemes

Digital control and diagnostic interface; provides temperature readout, safety status readout, internal EEPROM read/write programming access, and diagnostic mode control

Pre-temperature calibration with end-of-system calibration to compensate for system-level errors

AEC-Q100 Level 0 compliant

RoHS compliant

Applications

Main and auxiliary motors

Overload and overcurrent detection

Battery master switches

Intelligent circuit breakers

Photovoltaic inverters

Current monitoring and power supply
