The MSP430F67641AIPNR multi-phase metering SoC is a powerful, highly integrated solution for toll meters that enables accurate metering with few external components and low system cost. The low-power MSP430™ CPU and 32-bit multiplier performs all energy calculations to enable metering in a variety of applications such as rate management and communication with AMR or AMI modules.

Product Attributes

Core processor: MSP430 CPUXV2

Core specification 16-bit

Speed: 25 MHz

Connectivity: I²C, IrDA, SPI, UART/USART

Peripherals: undervoltage detection/reset, DMA, LCD, POR, PWM, WDT, 3x24b triangular integral converter

Number of I/O 52

Program memory capacity 128KB (128K x 8)

Programme memory type: Flash

RAM size: 8K x 8

Supply Voltage (Vcc/Vdd): 1.8V ~ 3.6V 1.8V ~ 3.6V

Data Converter: A/D 8x10b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

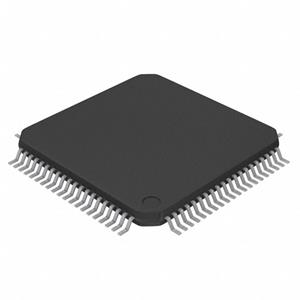

Package/case: 80-LQFP

Scope of delivery: 80-LQFP (12x12)

Applications

● Three-phase electronic energy meters

● Utility metering

● Energy monitoring
