The AM62A74AUMSIAMBRQ1 Sitara processor belongs to the Sitara™ Automotive class family of heterogeneous ARM® processors. The processor family includes embedded deep learning (DL), visual processing acceleration and video, display interfaces, and a wide range of automotive peripherals and networking options. The AM62A-Q1 is designed for a range of cost-sensitive automotive applications, including in-vehicle monitoring systems and drives, next-generation Emirror systems, and a wide range of industrial applications in building automation, factory automation, robotics and other markets.

specification

Core processor: ARM® Cortex®-A53

Number of cores/bus width: 4 cores, 64-bit

Speed: 1.4GHz

Coprocessor /DSP: ARM® Cortex®-R5F

RAM controller: DDR4, LPDDR4

Graphics acceleration: Yes

Display and interface controller: MIPI-CSI

Ethernet: 10/100/1000Mbps (2)

SATA: -

USB 2.0 (2)

Voltage - I/O: 1.1V, 1.2V, 1.8V, 3.3V

Operating temperature: -40°C ~ 125°C (TJ)

Security features: AES, ARM TZ, Encryption, DRBG, ECC, MD5, PKA, Random number Generator, RSA, Secure boot, SHA2, SMS

Mounting type: Surface mount type

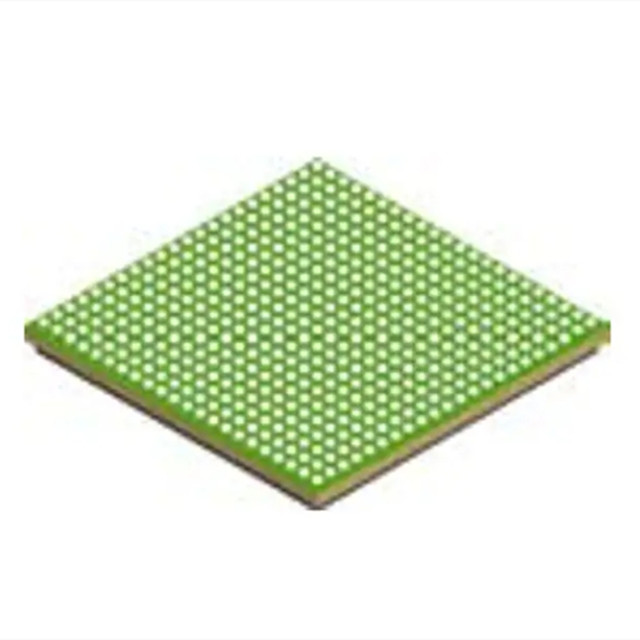

Package/Case: 484-BFBGA, FCBGA

Supplier Package: 484-FCBGA (18x18)

Additional interfaces: DMA, GPIO, I²C, I²S, MMC/SD, QSPI, SPDIF, SPI, TDM, UART/USART
