The PAC1941T-2E/J6CX is a power monitor and energy monitor for low end current detection that reports bus voltage and detection voltage at 16-bit resolution. The power is reported as the simultaneous product of two 16-bit independent buses and the detected voltage. All registers are accessible via I2C/SMBus, including 8 sample averages for read stability. The device detects overvoltage/undervoltage, overcurrent/undercurrent, and overpower based on limits set by the user for each channel, and generates an alarm output.

Product attribute

Function: Current/voltage monitor

Induction method: low end

Accuracy: ±1%

Voltage - Input: 2.7V ~ 5.5V

Operating temperature: -40°C ~ 125°C (TA)

Mounting type: Surface mount type

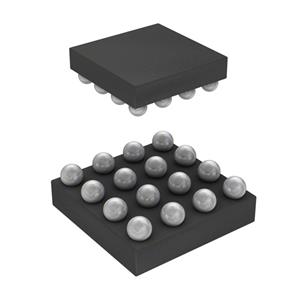

Package/housing: 16-WFBGA, WLCSP

Supplier Package: 16-WLCSP (2.23x2.17)

Basic product number: PAC1941

Typical application

• Embedded computing

• Network

• FPGA system

• Low voltage/High power - AI, GPU

• Industry

• Linux® applications

• Laptops and tablets

• Cloud, Linux and server computing

• Optical network module
