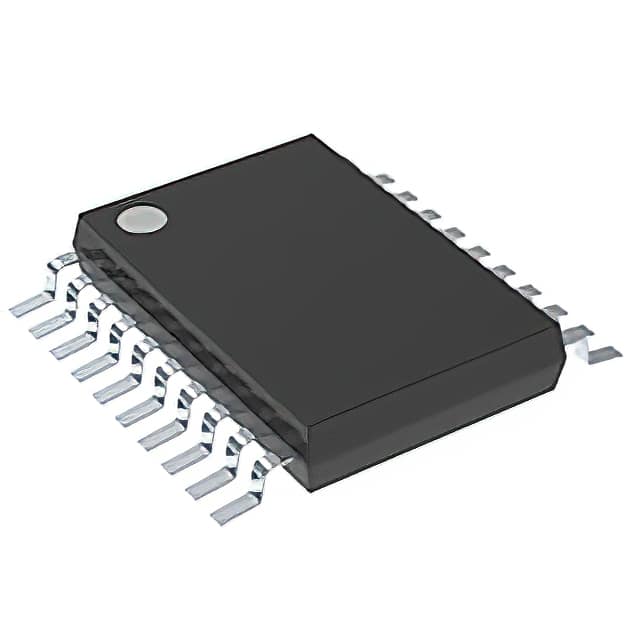

For picture reference, please see the specifications
< >

Commodity Model:MCP48FVB04-20E/ST

Trade Name:MCP48FVB04-20E/ST

Data Manual:MCP48FVB04-20E/ST.pdf

Brand:Microchip

Particular Year:23+

Package:20-TSSOP

Delivery Date:New original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Microchip
Model
MCP48FVB04-20E/ST
Package
20-TSSOP
Describe
Four-channel, 8-bit digital-to-analog Converter (DAC) with volatile memory and SPI serial interface

Product Description

The MCP48FVB04-20E/ST is a four-channel 8-bit voltage-output digital-to-analog converter with volatile memory and SPI-compatible serial interface. The device offers four different voltage reference options: device VDD, external VREF (buffered or unbuffered), and internal bandgap. With high AC performance, low power consumption and fast build up time, the device is suitable for consumer electronics and industrial applications such as set point control, offset adjustment and sensor calibration applications, as well as portable instruments.


Product attribute

Number of digits: 8

Number of digital to analog converters: 4

Setup time: 7.8µs (standard)

Output type: Voltage - No buffer

Differential output: None

Data interface: SPI

Reference type: external

Voltage - power supply, analog: 2.7V ~ 5.5V

Voltage - power supply, number: 2.7V ~ 5.5V

INL/DNL (LSB) : ±0.4LSB, ±0.05LSB

Structure: -

Operating temperature: -40°C ~ 125°C

Package/housing: 20-TSSOP (0.173", 4.40mm wide)

Supplier device package: 20-TSSOP

Mounting type: Surface mount type

Basic product number: MCP48FVB04
